GN533.6 Three-Lobed Knobs, Softline, with Brass / Stainless Steel Bush
Choose your Part
Please select desired options to reveal part number, price and availability
Product Description
GN533.6 Three-Lobed Knobs, Softline, with Brass / Stainless Steel Bush
The Softline coating of the three-lobed knobs GN 533.6 makes these operating elements particularly “operator friendly” and hence ergonomic.
The soft, non-slip coating improves the contact in both moist (hand perspiration) and in dry conditions, with oily surfaces and at high or very low temperatures.
The use of Softline star knobs is recommended particularly when heavy duty clamping is required.
Specification
- Plastic Technopolymer (Polyamide PA), glass fibre reinforced, temperature resistant up to 130°C, black, matte finish.
- Softline coating is chemically bonded with the plastic core
- Bush
- Brass MS
- Stainless steel AISI 303 NI
- Cap Colour, matte finish

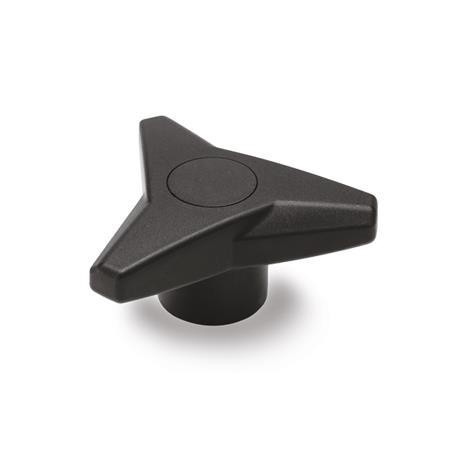

- Black, RAL 9005, DSW
- Orange, RAL 2004, DOR

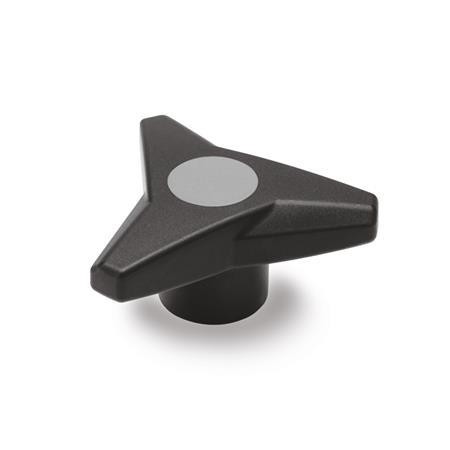

- Grey, RAL 7035, DGR
- Yellow, RAL 1021, DGB

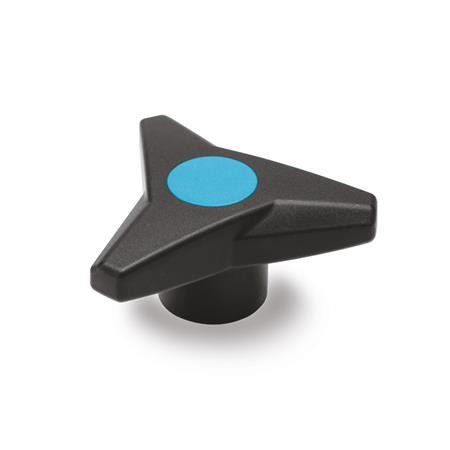

- Blue, RAL 5024, DBL
- Red, RAL 3000, DRT

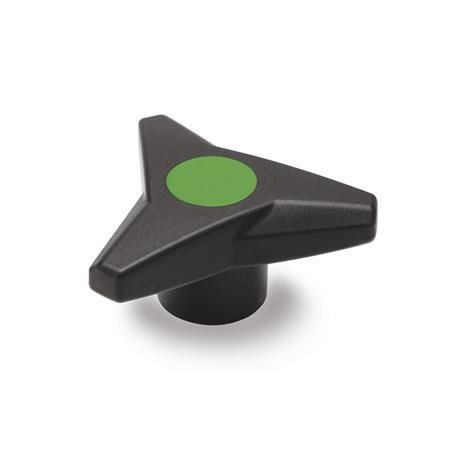

- Green, RAL 6017, DGN
CAD Viewer
Technical Data
