Type C - with pull ring, with rest position
Product Description

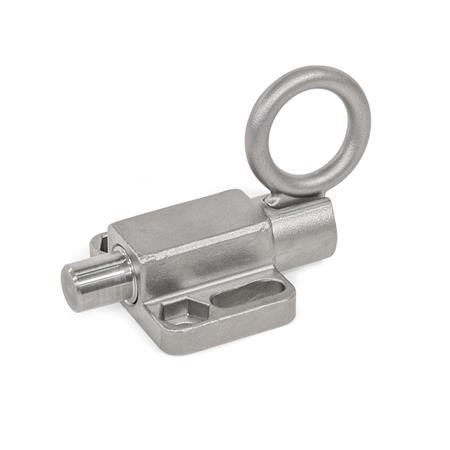

GN722.6 Indexing Plunger, Stainless Steel, with Flange for Surface Mounting, Parallel to the Plunger Pin
With indexing plungers GN 722.6, the plunger pin is actuated via the pull ring. This is done either manually, with a cable or by means of an extended pull rod with hook. The stainless steel version A4 is suitable for use in particularly aggressive environments.
The type with rest position is used when the plunger pin should temporarily not protrude. For this purpose, the pull ring is turned sideways after the locking pin has been retracted. The ring is held in this position by the catch groove at the top of the guide.
The dimensional tolerances between the pin and the guide have been chosen to ensure functional reliability even in roughly dimensioned applications or in the event of soiling.
For fastening, slotted or hexagonal mounting holes allow the use of socket cap screws DIN 912 and hex screws or nuts according to DIN931 or DIN 934.
