Product Description

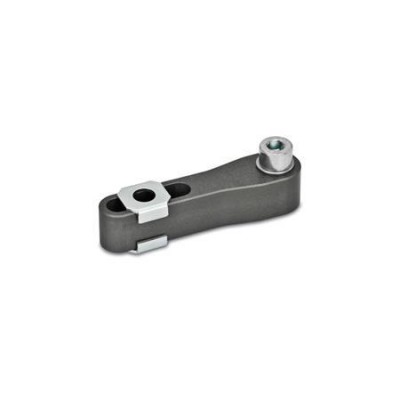

GN875.2 Clamping Arms with Slotted Hole, for Swing Clamps GN875 & GN876
Clamping arms GN 875.2 with slotted hole are designed as accessories to swing clamps GN 875 / GN 876. The slotted hole gives adjustable positioning of application-specific pressing and clamping elements in connection with the two flanged washers.
The angle orientation of the clamping arm can be set during mounting on the swing clamp. When tightening the screw, the piston rod must not experience any torque. The clamping arm must therefore be held to prevent twisting.
Complete with a socket cap screw DIN 912 and a washer ISO 7092 for fastening to the swing clamp as well as two flanged washers for fastening the clamping bolts.
Specification
Aluminium AL hard anodized HE - wear-resistant surface
Flanged washers - Steel, zinc plated, blue passivated
Socket cap screw DIN 912 - Steel, zinc plated, blue passivated
Washer ISO 7092 - Steel, zinc plated, blue passivated
Accessory
Toggle clamp spindle assemblies GN708.1
