GN302.2 Flat Adjustable Hand Lever

CloseNextPrevious



CloseNextPrevious

GN302.2: Flat Adjustable Hand Lever Colour: SW - black, RAL 9005, textured finish



CloseNextPrevious

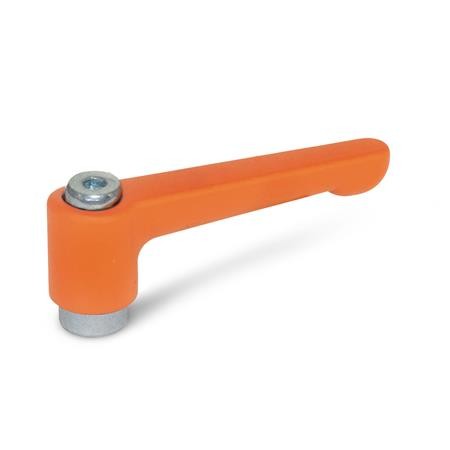

GN302.2: Flat Adjustable Hand Lever Colour: OS - Orange, RAL 2004, textured finish



CloseNextPrevious

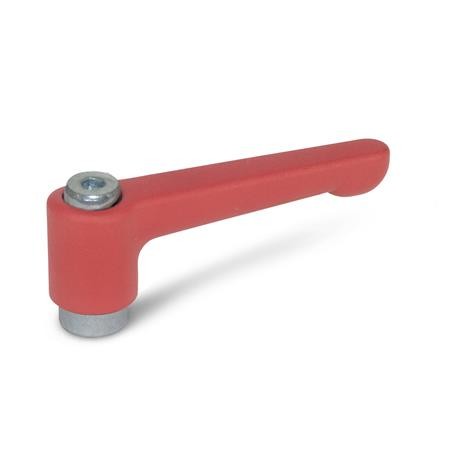

GN302.2: Flat Adjustable Hand Lever Colour: Color: RS - Red, RAL 3000, textured finish



CloseNextPrevious

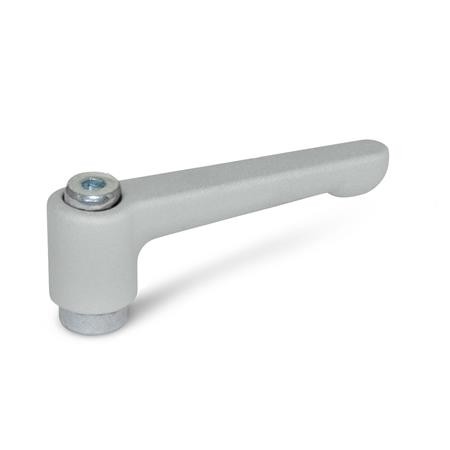

GN302.2: Flat Adjustable Hand Lever Colour: SR - Silver, RAL 9006, textured finish



Choose your Part

Please select desired options to reveal part number, price and availability

l1 Handle length

22 30 45 63 78

d1 Connection thread

M3 M4 M5 M6 M8 M10

Colour

OS RS SR SW
Part Selected:
GN302.2-22-M3-OS £3.49 (£4.19 inc VAT) Copy Link to Selected Part
Value discounts applied at basket
-+

Stock Availability
No Stock for immediate dispatch
Quantity:


Product Description

GN302.2 Flat Adjustable Hand Lever

These flat adjustable hand levers, GN 302.2, have a straight lever, which is not inclined at an angle and is instead parallel to the clamping space. For some applications this is an advantage either due to limited space or for visual reasons.

These levers are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.

Pulling the lever disengages the serrations and allows it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.

Specification

Handle - Zinc die casting, powder coated.

Black, SW RAL 9005, textured finish. Orange, OS RAL 2004, textured finish. Red, RS, RAL 3000, textured finish. Silver, SR RAL 9006, textured finish.

Bushing and retaining screw - Steel, zinc plated, blue passivated.
