GN926
Clamping Lever with Eccentrical Cam, Plastic, Steel Bushing
Please select desired options to reveal part number, price and availability
Options
Type A - with adjustable contact plate

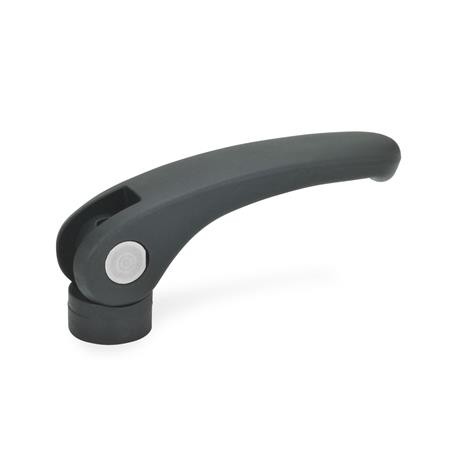

Type B - with fixed contact plate
Product Description
GN926.1 Clamping Lever with Eccentrical Cam, Plastic, Stainless Steel Bushing
Clamping levers with eccentrical cam GN 926.1 are used for rapid clamping and releasing. Hereby, contrary to a clamping operation via a thread, these levers permit a torque-free clamping.
The lever has been designed to ensure that its movement cannot exceed the max. clamping force. There are no loose components since they are all assembled and mounted in their correct order. With these clamping levers with eccentrical cam GN 926.1, clamping forces of up to 4 kN (l1 = 63) bzw. 7 kN (l1 = 79) can be reached.
Type A has the following benefits:
The distance between the lever cams and the clamping surface is adjustable via a planar curve, allowing the clamping position to be set easily with maximum clamping force. Also, the position of the lever relative to the clamping axis can be determined.
Specification
Lever - Plastic (Polyamide PA). Glass fiber reinforced, Temperature resistant up to 80 °C. Black, matte
Connector - Plastic (Polyacetal POM), With threaded bushing, stainless steel
Contact plate / Set collar - Plastic (Polyamide PA-HP), Black, matte
Axis - stainless steel
