GN820.5 Toggle Clamps, Horizontal Operating Lever, Lock Mechanism, Side Mounting, Steel / Stainless Steel

Choose your Part

Please select desired options to reveal part number, price and availability

Options

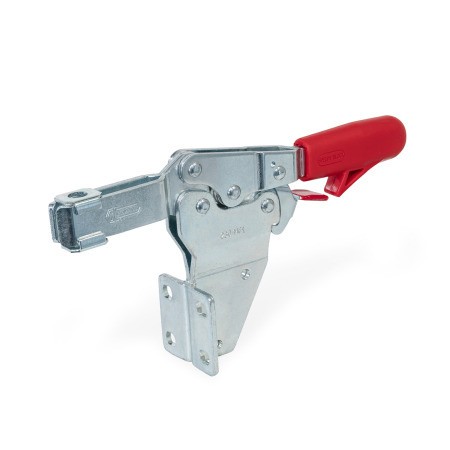

Type MFL - forked clamping arm, with two flanged washers

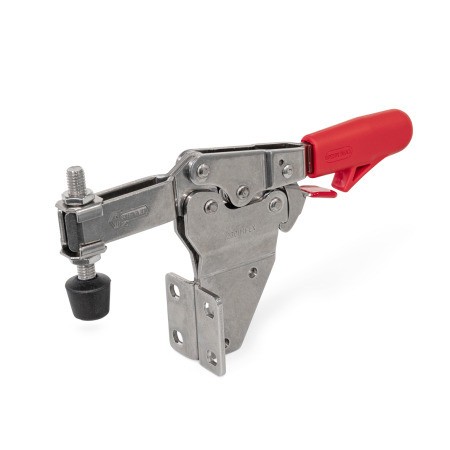

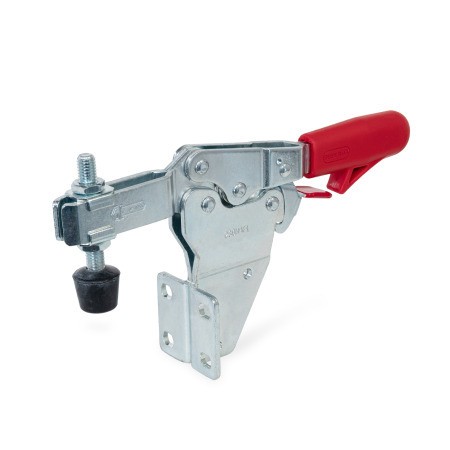

Type MFLC - forked clamping arm, with two flanged washers and clamping screw GN708.1.

Product Description

GN820.5 Toggle Clamps, Horizontal Operating Lever, Lock Mechanism, Side Mounting, Steel / Stainless Steel

Toggle clamps GN 820.5 are securely locked while in the clamped position to prevent accidental release or release due to vibrations. The clamp is released with a single handed operation.

Clamping is based on the toggle lever principle, with the clamping lever and clamping arm moving in opposite directions. The mounting surface, rotated by 90°, allows for compact installation next to the clamping point. The low overall height in the clamped position is another distinguishing feature of these clamps.

Toggle clamps with forked clamping arm, type MFL accommodate an application specific screw via two flanged washers. A clamping screw with rubber thrust pad is included with type MFLC

Specification

• Tensioning mechanism - moving parts lubricated with special grease.
• Steel, sheet metal parts. Case hardening steel C10, zinc plated, blue passivated, bearing bolt tempered. ST
• Stainless steel AISI 304 NI
• Handle - plastic, red, oil resistant.
• Flanged washers GN898
• For ST Steel, zinc plated, blue passivated
• For NI Stainless steel AISI 304
• Clamping screw GN708.1 for type MFLC
• For ST - steel, zinc plated, blue passivated
• For NI - stainless steel AISI 304
• Thrust pad - Chloroprene rubber (CR), hardness 85 Shore A, vulcanised, black, type A (flat pressure area.)

Accessories

GN801 Holders for Clamping Screws (for Type MFL

GN801.1 Clamping arm extenders (for Type MFL

GN801.2 Clamping arm extenders (for Type MFL
