GN2424 Cam Roller Carriage for Cam Roller Linear Guide Rails GN2422



CloseNextPrevious



CloseNextPrevious

GN2424: Cam Roller Carriage
Type: N - Version: U



CloseNextPrevious

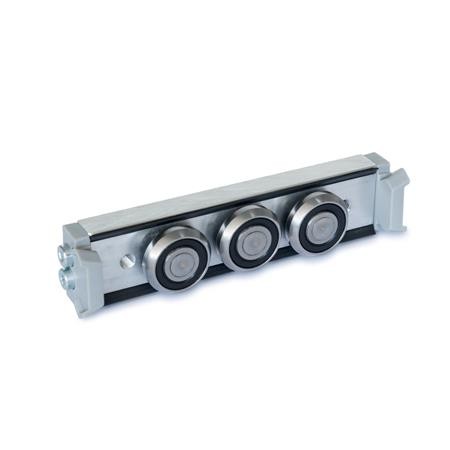

GN2424: Cam Roller Carriage
Type: N - Version: X



CloseNextPrevious

GN2424: Cam Roller Carriage
Type: R - Version: U



CloseNextPrevious

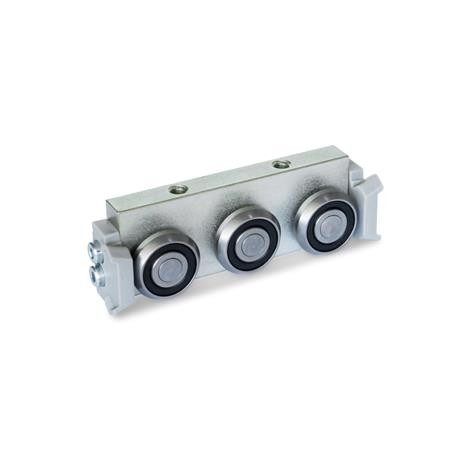

GN2424: Cam Roller Carriage
Type: R - Version: X



CloseNextPrevious

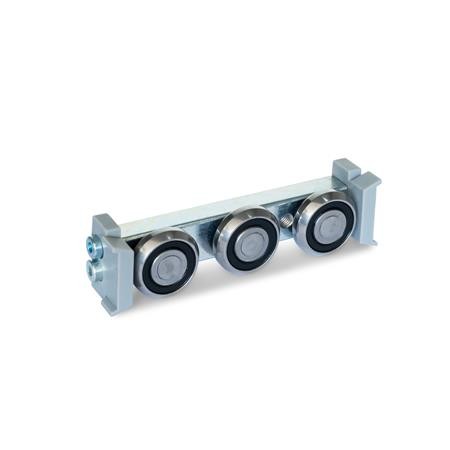

GN2424: Cam Roller Carriage
Type: S - Version: U



CloseNextPrevious

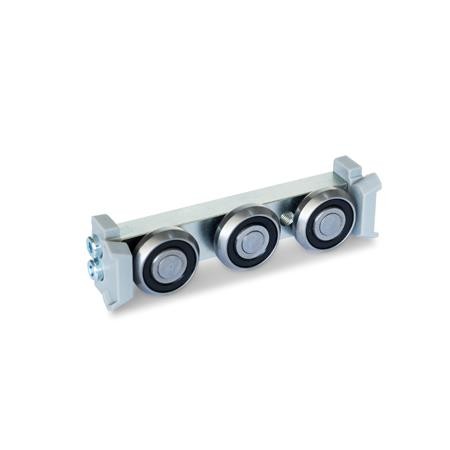

GN2424: Cam Roller Carriage
Type: S - Version: X



CAD Viewer Technical Data

Series Selector

Options

Type N - Normal roller carriage, central arrangement.

Type R - Radial roller carriage, lateral arrangement.

Type S - Narrow roller carriage, central arrangement.

Version X - With wiper for fixed bearing rail (X-rail).

Versionn U - With wiper for floating bearing rail (U-rail).

CAD Viewer Technical Data

Product Description

GN2424 Cam Roller Carriage for Cam Roller Linear Guide Rails GN2422.

These roller carriages GN2424 are combined into roller guide systems together with rails GN2422. These space-saving units are suitable for carrying sliding doors or are used in mechanical engineering or jigmaking for the linear traversal of plant sections.

These systems feature high stability and quiet running at high traversal speeds. Depending on roller carriage type, these can be attached in axial or radial direction to the roller axes. Also depending on rail type, matching wipers are mounted, with type N featuring additional sealing lips in longitudinal direction.

Specification

Base body - Aluminium AL (Type N), Steel ST (Type R / Type S), zinc plated, blue passivated.

Rollers - Anti-friction bearing Steel ST, hardened. Ball mounted, sealed (2RS), permanent lubrication.

Wiper - Plastic (PUR) grey.

Steel insert - Zinc plated.
