GN2496 Cam Rollers, Stainless Steel, for Linear Guide Rails GN2492



CloseNextPrevious



CloseNextPrevious

GN2496 Cam Rollers, Stainless Steel
Type: B Cam Roller with Bore



CloseNextPrevious

GN2496 Cam Rollers, Stainless Steel

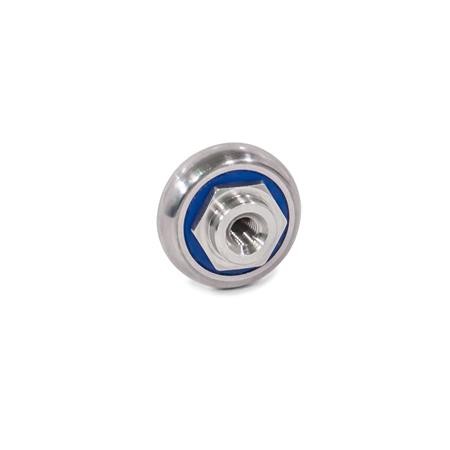

Type: N Standard Cam Roller with Centred Threaded Mounting Collar



CloseNextPrevious

GN2496 Cam Rollers, Stainless Steel

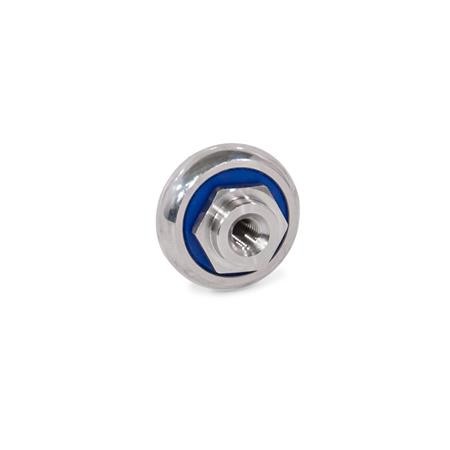

Type: E Eccentric Cam Roller with Off Centre Threaded Mounting Collar



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type B - Cam rollers with bore

Type N - Standard cam roller with centered threaded mounting collar

Type E - Eccentric cam roller with off-center threaded mounting collar

Version X - For fixed bearing guide rail

CAD Viewer Technical Data

Product Description

GN2496 Cam Rollers, Stainless Steel, for Linear Guide Rails GN2492

Stainless steel cam rollers GN 2496 can be combined with stainless steel cam roller linear guide rails GN2492 to build individual and space-saving linear guide rail systems.

The outer surfaces of the cam rollers are spherically shaped so that, in conjunction with the correspondingly shaped rails, there is a precise, linear run across four points of contact. The materials can also be used in aggressive environments that can be found for example in the chemical, pharmaceutical and medical industries.

In combination with the guide rail, the play or initial tension of multiple cam rollers can be determined during assembly by using the adjustable eccentric cam roller (Type E). The required open-end wrench can be ordered separately as GN2424.1.

Stainless steel cam rollers can be combined with custom rails provided that the run geometry is matching.

The sealed and permanently lubricated cam rollers guarantee superior running performance and low wear.

Specification

Cam roller - Stainless Steel AISI 440C, dust and splash water protected. Permanent lubrication, roller bearing grease, FDA compliant, class H1

Sealing disks - Rubber (NBR), blue 2RS

Threaded mounting collar - Stainless Steel AISI 316L, Operating temperature -40 °C to 100 °C

Accessory

Open-End Wrench GN2424.1-13-15
