GN646.3
Carrier Profiles, for Roller and Ball Tracks
Please select desired options to reveal part number, price and availability
Options
Type C - Connector
Type E - End Cap
Product Description
GN646.6 Connector / End Cap for Carrier Profiles GN646.3

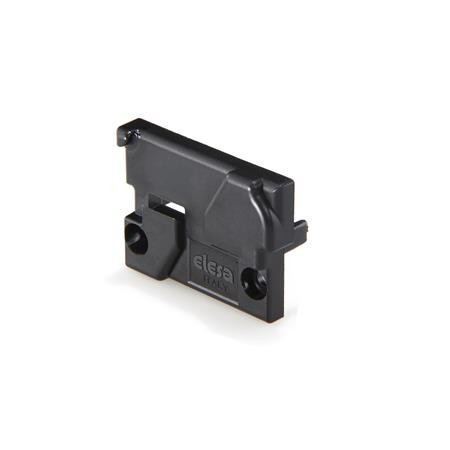

The connector GN 646.6 (Type C) can be used to create longer carrier profile extensions. Assembled with two screws at each profile end, the carrier profiles are interconnected without any further fastening hardware as shown in the drawing. The connecting point cannot carry any weight and must be supported from underneath.
End caps (Type E) are the preferred end finishing components for roller or ball rails. They also cover the sharp edges of the carrier profiles, to create a clean, safe and finished look.
Two slotted pan-head screws ISO7049-ST2 9x13 for mounting the connectors and the end caps are included.
Specification
Plastic Polyamide PA, black, temperature resistant up to 90 °C
Pan-head screws - Stainless Steel
