GN6473 Side Guide Segments, For Curves, Carrier Profile Plastic, Cylinder and Ball Rollers on One Side

Choose your Part

Please select desired options to reveal part number, price and availability

Type K - Ball shaped rollers

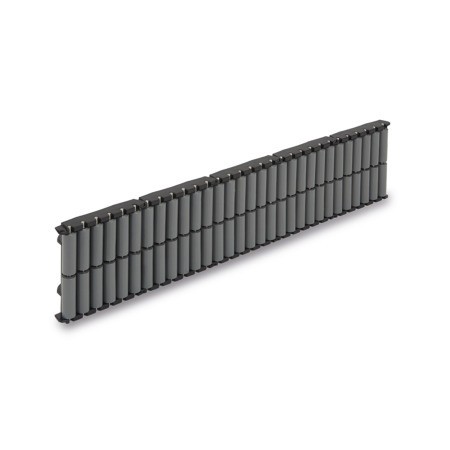

Type Z - Cylindrical rollers

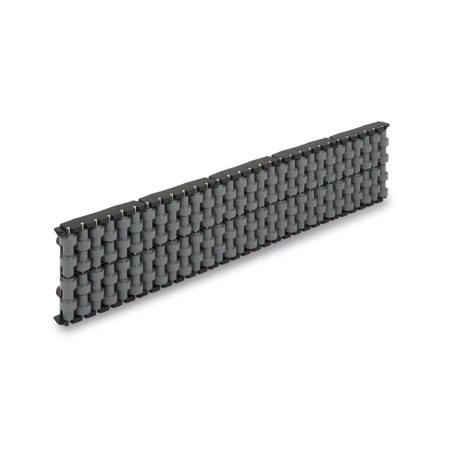

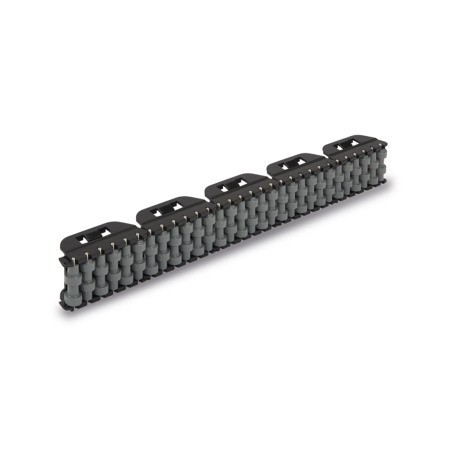

Type ZA - Cylindrically offset rollers

Identification 1 - Single row

Identification 2 - Double row

Product Description

GN6473 Side Guide Segments, For Curves, Carrier Profile Plastic, Cylinder and Ball Rollers on One Side

Side guide segments GN 6473 are attached to the sides of conveyor sections, and their rollers guide the conveyed goods without damage. Due to their segmentation, they are particularly suited for use on curves.

The type of rollers used depends on the conveyed material. Type K is used for cans and plastic boxes. For cardboard boxes, type Z can be used for an even material flow. For glass containers, type ZA is used since it allows easy removal of any contamination due to glass breakage.

Fastening is carried out with retaining profiles GN6473.1, which are attached to conveyor systems with connecting elements GN6473.2.

Included are 5 segments with total length l₁.

Specification

• Carrier profile segment- Plastic, polyacetal (POM), black.

• Rollers - plastic, polyethylene (PE), operating temperature -20 degrees C to +90 degrees C, grey, RAL 7035 GR
• Axis - stainless steel AISI 304

Accessories

Retaining profiles GN6473.1

Connecting elements GN6473.2
