GN115.6 Mini Latch, Stainless Steel, Various Operation Options

CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

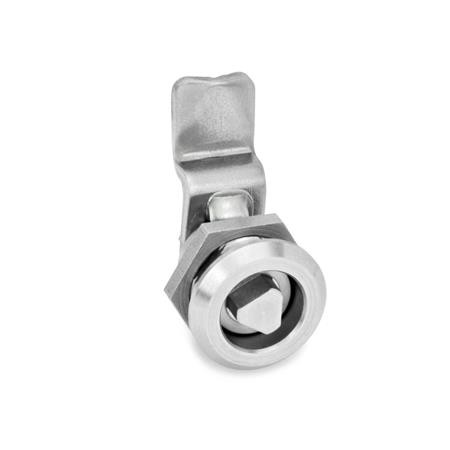

Type DK - Operation with triangular spindle key

Type VK - Operation with square spindle (VK6)

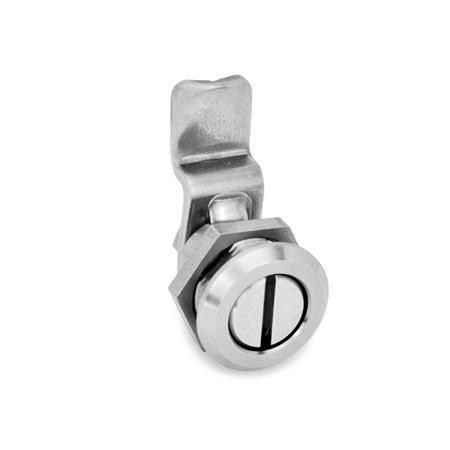

Type SCH - Operation with slot

CAD Viewer Technical Data

Product Description

GN115.6 Mini Latch, Stainless Steel, Various Operation Options

These mini latches have smaller dimensions than GN115. They offer a straightforward locking action rather than a locking and clamping action.

They lock by a turning operation, limited to 90°, which moves the locking behind the door frame. The bevels of the locking ease the closing of the door.

Latches with different cranks cover a latch distance A from 7,5 to 19,5 mm.

In their standard design, the latches have the same lock / the same key.

The lockings are included loose.

Specification

Stainless Steel NI AISI 303

Latch - Stainless Steel NI AISI 304

Protection class IP65 via the housing gasket and the O-ring

Accessories

Socket keys GN119.2.

Protective caps GN120
