GN115.7 Latch with U Handle, Zinc Die  Cast, Plastic Coated



CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

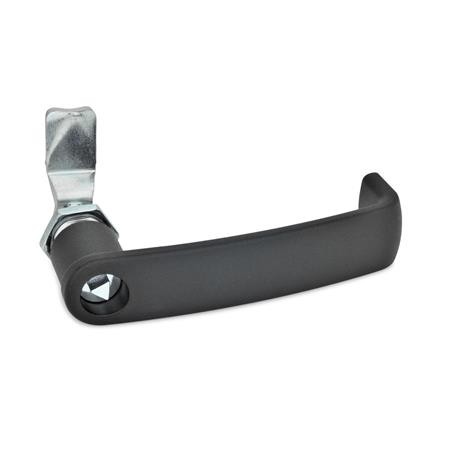

Type DK Operation with triangular spindle (DK7)

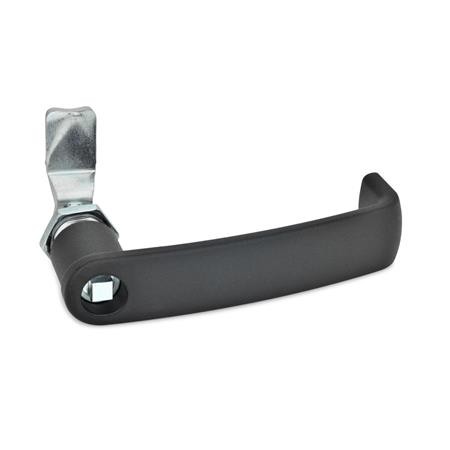

Type VK7 Operation with square spindle A/F7

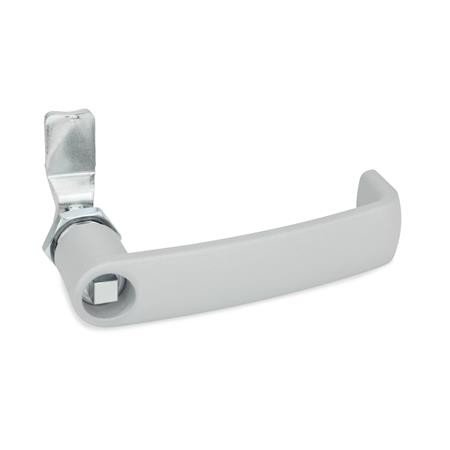

Type VK8 Operation with square spindle A/F8

Type SCH Operation with slot

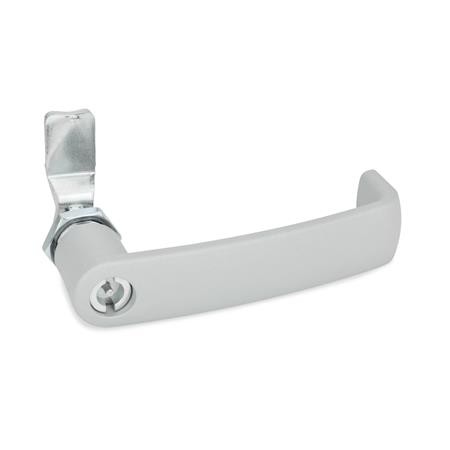

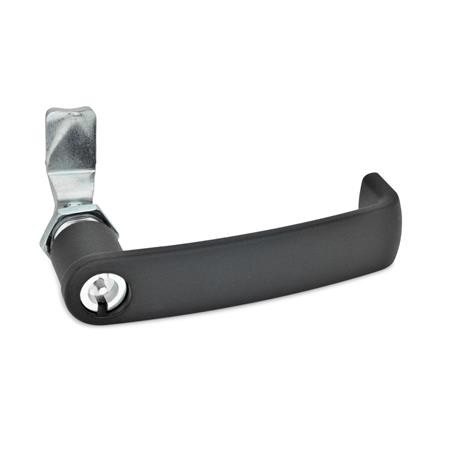

Type VDE Operation with double bit

CAD Viewer Technical Data

Product Description

GN115.7 Latch with U Handle, Zinc Die  Cast, Plastic Coated

These latches with cabinet "U" handles are used when the application requires both a locking mechanism and a handle.

A rotary movement limited to 90 degrees shifts the latch mechanism behind the door frame, with the bevelled latch making the door closing action easier.

The choice of 22 differently shaped catch plates gives a range of 4 to 50 mm.

These latches are supplied with a lock.

Specification

Cabinet U handle - Zinc die casting, plastic coated. Black, RAL 9005, textured finish SW. Silver, RAL 9006, textured finish, SR

Other parts - Steel, zinc plated, blue passivated.
