GN115.8 Hook Type Latch, Not Lockable, Stainless Steel, Plastic Operating Elements

Close Next Previous

GN115.8 Hook Type Latches, Stainless Steel, Plastic Elements
Type HG, Hook H1 ID 1

Close Next Previous

GN115.8 Hook Type Latches, Stainless Steel, Plastic Elements
Type HG, Hook H1 ID 2

Close Next Previous

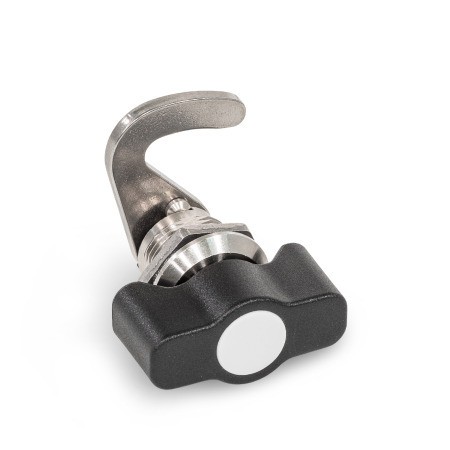

GN115.8 Hook Type Latches, Stainless Steel, Plastic Elements
Type KG, Hook H1 ID 1

Close Next Previous

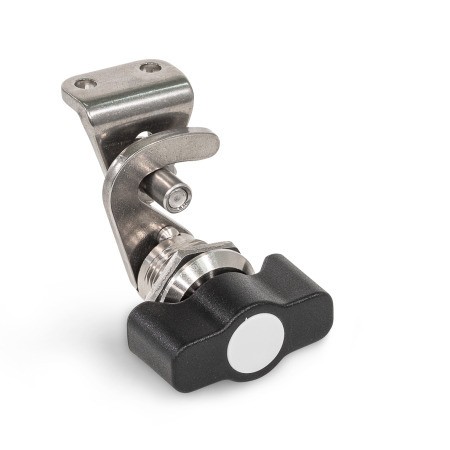

GN115.8 Hook Type Latches, Stainless Steel, Plastic Elements
Type KG, Hook H1 ID 2

Close Next Previous

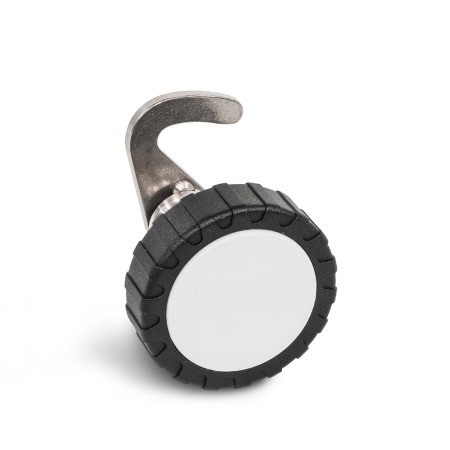

GN115.8 Hook Type Latches, Stainless Steel, Plastic Elements
Type RG, Hook H1 ID 1

Close Next Previous

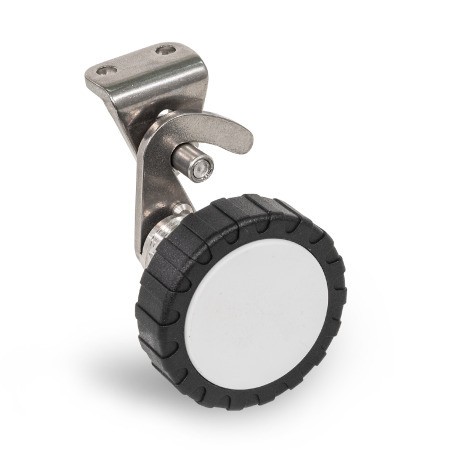

GN115.8 Hook Type Latches, Stainless Steel, Plastic Elements
Type RG, Hook H1 ID 2

CAD Viewer

Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type RG - Operation with knurled knob.

Type KG - Operation with wing knob.

Type HG - Operation with lever.

Hook Version H1 - Pivoting radius R=28

Identification number 1 - without latch bracket.

Identification number 2 - with latch bracket.

Product Type

GN115.8 Hook Type Latch, Not Lockable, Stainless Steel Plastic Operating Elements

Hook-type latches GN 115.8 with hook and catch are mainly used for sliding doors and flaps. The locking action is in radial direction to the axis of rotation, resulting in a wide variety of different uses.

They are supplied with the hook enclosed loose.

Specification

Lock housing - Stainless steel N

Operating element - Plastic, polyamide PA, black, matte finish

Other parts - Stainless steel, AISI 304.

Cover cap - Plastic, light grey, matte finish.

Protection class IP65.

Available on Request:

Hook-type latches with other hook distance A

Hook with other pivoting radius R
