GN115.8 Hook Type Latch, Not Lockable, Stainless Steel, Stainless Steel Operating Elements
CloseNextPreviousGN115.8 Hook Type Latch, Stainless Steel, Operating Elements

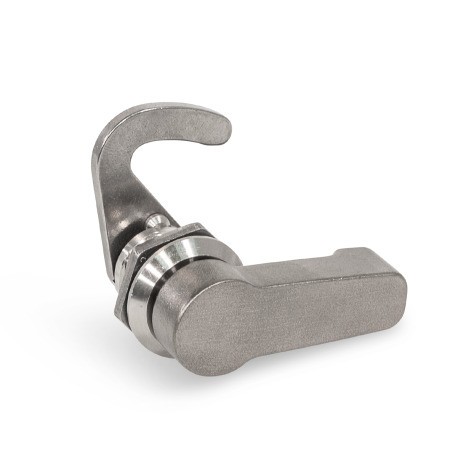

Type HGN, ID 1
CloseNextPreviousGN115.8 Hook Type Latch, Stainless Steel, Operating Elements

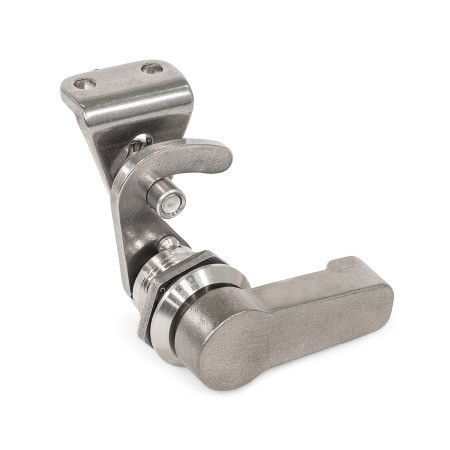

Type HGN, ID 2
CloseNextPreviousGN115.8 Hook Type Latch, Stainless Steel, Operating Elements

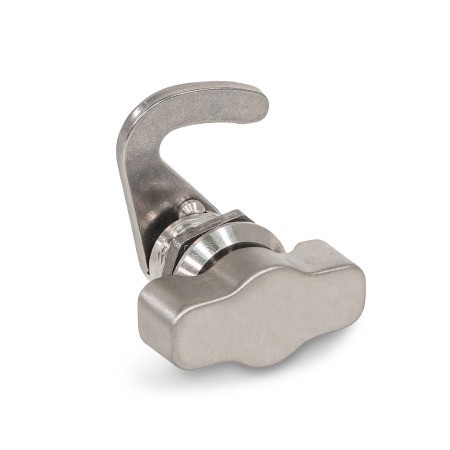

Type KGN, ID 1
CloseNextPreviousGN115.8 Hook Type Latch, Stainless Steel, Operating Elements

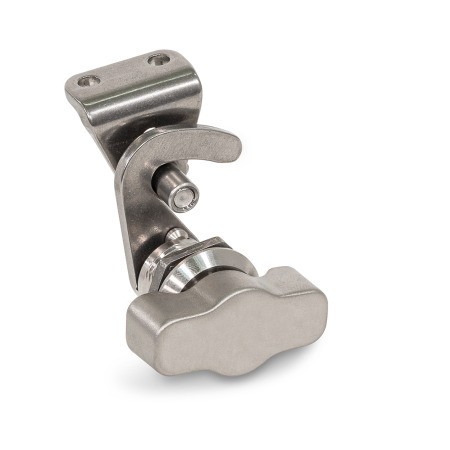

Type KGN, ID 2
CloseNextPreviousGN115.8 Hook Type Latch, Stainless Steel, Operating Elements
Type SG, ID 1
CloseNextPreviousGN115.8 Hook Type Latch, Stainless Steel, Operating Elements

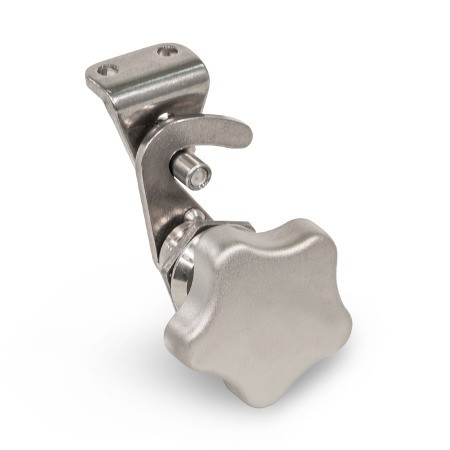

Type SG, ID 2
CloseNextPreviousGN115.8 Hook Type Latch, Stainless Steel, Operating Elements

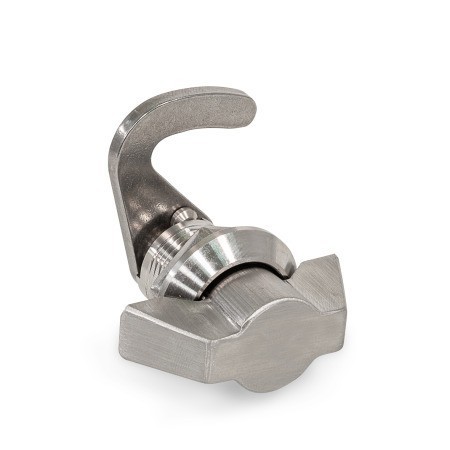

Type SKN, ID 1
CloseNextPreviousGN115.8 Hook Type Latch, Stainless Steel, Operating Elements

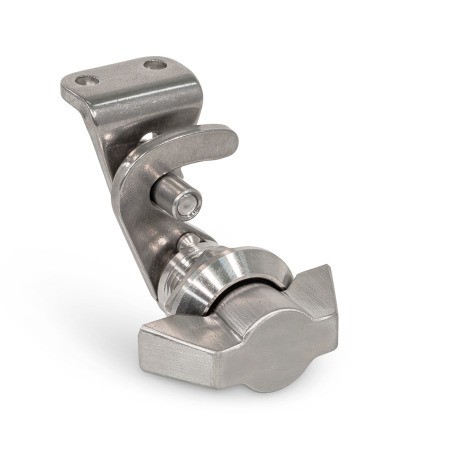

Type SKN, ID 2
CloseNextPreviousGN115.8 Hook Type Latch, Stainless Steel, Operating Elements

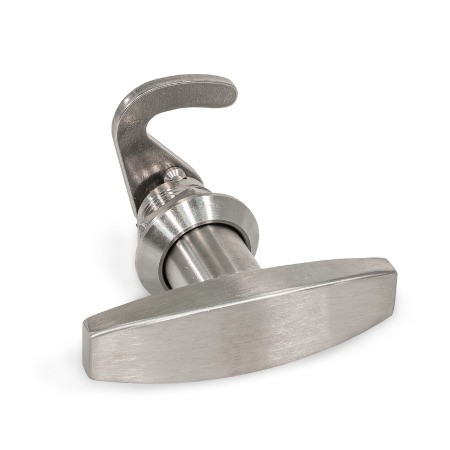

Type STN, ID 1
CloseNextPreviousGN115.8 Hook Type Latch, Stainless Steel, Operating Elements
Type STN, ID 2
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Type HGN - Operation with lever.
Type KGN - Operation with wing knob.
Type SG - Operation with star knob.
Type SKN - Operation with wing knob.

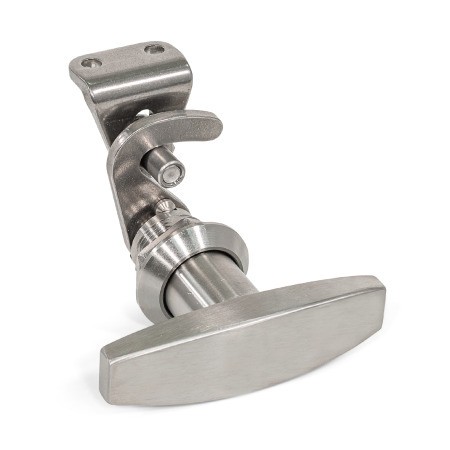

Type STN - Operation with T-Handle.
Hook Version H1 - Pivoting radius R=28
Identification number 1 - without latch bracket.
Identification number 2 - with latch bracket.
Product Type
GN115.8 Hook Type Latch, Not Lockable, Stainless Steel, with Operating Elements
Hook-type latches GN 115.8 with hook and catch are mainly used for sliding doors and flaps. The locking action is in radial direction to the axis of rotation, resulting in a wide variety of different uses.
They are supplied with the hook enclosed loose.
Specification
- Lock housing - Stainless steel N
- AISI 303 for type SG / KGN / HGN
- AISI 316 for type SKN / STN
- Operating element
- Stainless steel AISI 304 for Type SG. Sheet metal drawn, hub welded.
- Stainless steel AISI CF-8 for Type KGN / HGN
- Stainless steel AOSO 316 for Type SKN / STN
- Other parts - Stainless steel, AISI 304.
Available on Request:
Hook-type latches with other hook distance A
Hook with other pivoting radius R
