GN115.8 Hook Type Latch, Operation with Socket Keys, Not Lockable, Stainless Steel

Choose your Part

Please select desired options to reveal part number, price and availability

Options

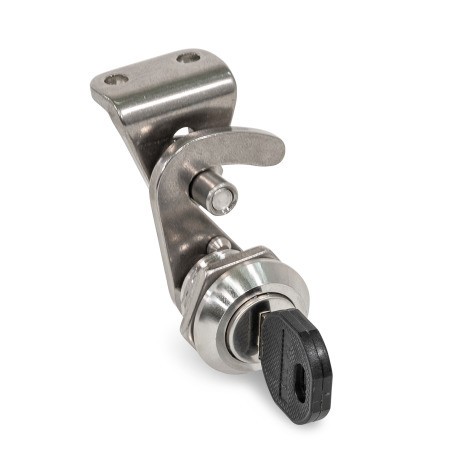

Type SC - with key (same lock).

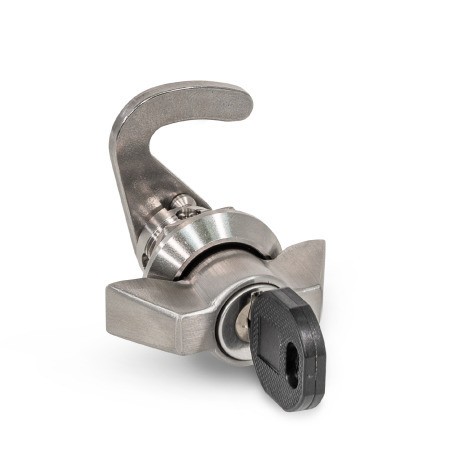

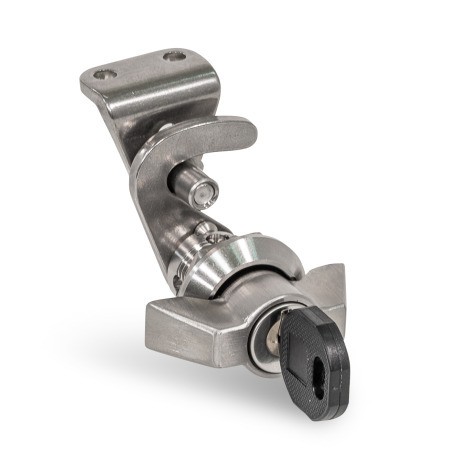

Type SCKN - with wing knob (same lock).

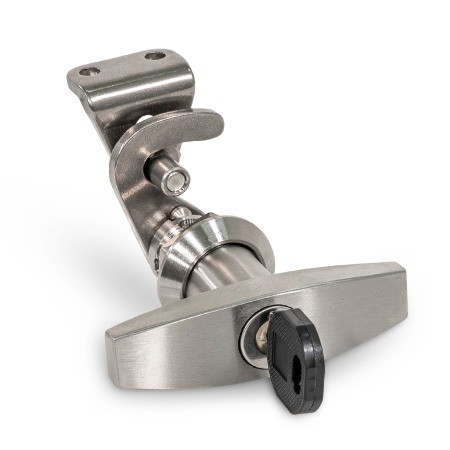

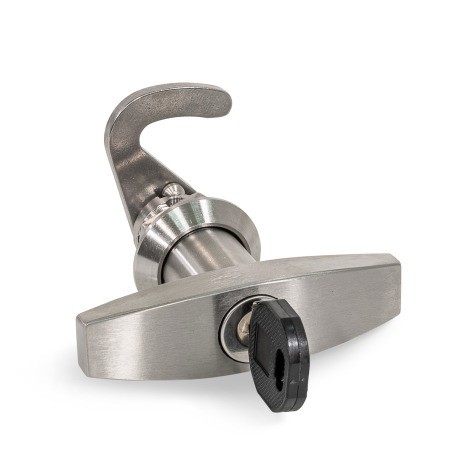

Type SCTN - with T handle.

Hook Version H1 - Pivoting radius R=28.

Identification Number 1 - without latch bracket.

Identification Number 2 - with latch bracket.

Product Description

GN115.8 Hook Type Latches, Operation with Socket Keys, Not Lockable, Stainless Steel

Hook-type latches GN 115.8 with hook and latch bracket, are mainly used for sliding doors and flaps. The locking action is in radial direction to the axis of rotation, resulting in a wide variety of different uses.

The latches are delivered with 2 keys. The key can be removed in both end positions. Types with standard lock allow every lock to be opened with the same key.

The latch hook is enclosed loose.

Specification

• Lock housing - Stainless steel N.
• AISI 303 for Type SC.
• AISI 316 for Type SCKN / SCTN.
• Operating element for Type SCKN / SCTN.
• Other parts - Stainless steel AISI 304.
• Key - Nickle silver with plastic handpiece.
• Protection class IP65.

On Request

Hook type latches with different hook distance A

Hook with other pivoting radius R
