CAD Data


GN115.9 Latches with Safety Function, Operation with Socket Key, Not Lockable

CAD Viewer Technical Data

Series Selector


Type DK - Operation with triangular spindle (DK7)

Type VK7 - Operation with square spindle (A/F7)

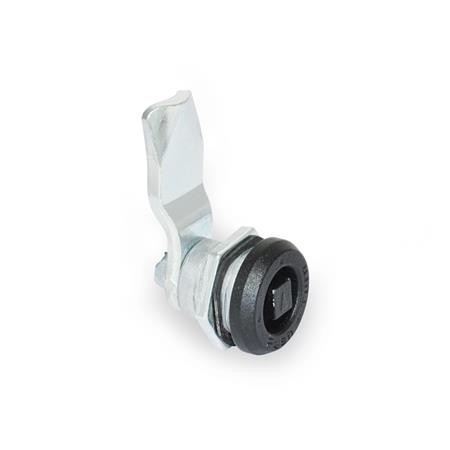

Type VK8 - Operation with sqare spindle (A/F8)

CAD Viewer Technical Data

Product Description

GN115.9 Latches with Safety Function, Operation with Socket Key, Not Lockable

Latches GN 115.9 have a push-to-turn safety function. In the two end positions, the spindle is locked in place by the lock. The device can only be turned 90° when the operating element is pressed down with the socket key, which releases the safety pin from the locked position. This feature reliably protects the lock from moving on its own or as the result of vibrations.

The bevelled edges of the lock make closing the door easy. Latches with different cranks cover a latch distance A from 4 to 33mm.

Latches GN115.9 are supplied with loosely enclosed latch.


Lock housing - Zinc die casting

Locating ring - Plastic coated, black, textured finish SW

All other parts - Steel zinc plated, blue passivated


Socket keys GN119.2

Protective caps GN120

Opening handles GN120.1
