GN115.9 Latches with Safety Function with Operating Elements, Not Lockable

 images/300/GN115.9-Latches-with-safety-function-with-operating-elements-not-lockable-sketch_W.png

CAD Viewer Technical Data

Series Selector

Options

Type RG - Operation with knurled knob GN7336

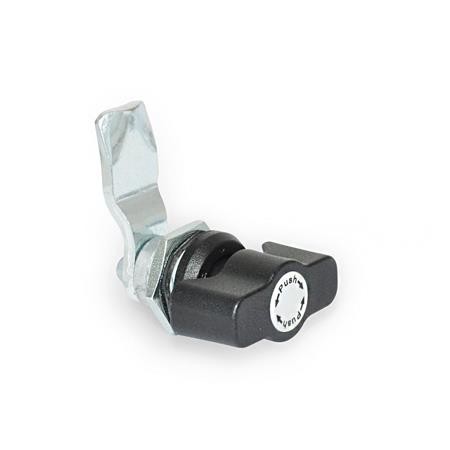

Type KG - Operation with wing knob

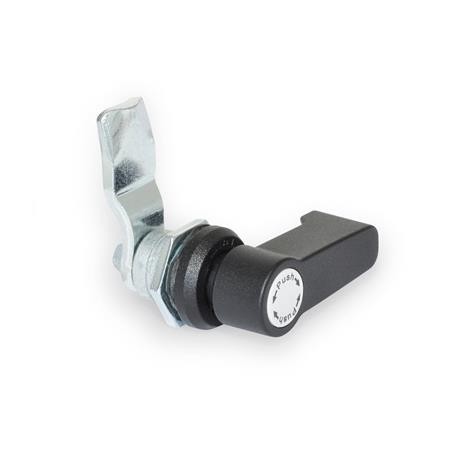

Type HG - Operation with lever

CAD Viewer Technical Data

Product Description

GN115.9 Latches with Safety Function with Operating Elements, Not Lockable

Latches GN115.9 have a push-to-turn safety function. In the two end positions, the spindle is locked in place by the latch. The device can only be turned 90° when the operating element is pressed down, which releases the safety pin from the locked position. This feature reliably protects the latch from moving on its own or as the result of vibrations.

The beveled edges of the latch make closing the door easy. Latches with different cranks cover a latch distance A from 4 to 32mm.

Latches GN115.9 are supplied with loosely enclosed latch.

Specification

Lock housing - Zinc die casting

Locating ring - plastic coated, black, textured finish SW

All other parts - Steel, zinc plated, blue passivated

Operating elements - Plastic (Polyamide PA), black, matt

Cover cap - Plastic (Polyamide PA), light grey

SELECT HasTableOnOff FROM Series WHERE SeriesID=1956

Quality & Certification
Download our quality certificates & service information documentation

Guaranteed Fast Delivery
Next day delivery on all stock items Fully trackable shipping via UPS

University or DIY Project
Friendly, technical help & advice No minimum charge for small orders

Our Reviews & Feedback
Our customers are important to us Real feedback from real customers

Trade Accounts Welcome
30 day credit accounts available Easy, quick online application form

Key Cloud...
GN115.9 Latches with safety function Operation with operating elements not lockable push to turn
