GN115 Latch, Black Plastic Coated, Lockable

images/300/GN115_-Latch-lockable-black-plastic-coated-sketch_W.png

CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

Type SC - Operation with key (same lock)

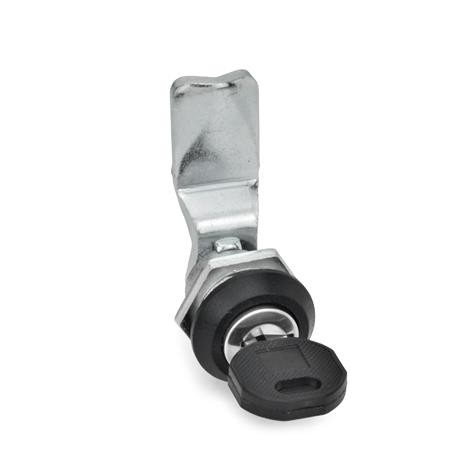

Type SU - Operation with key (different lock)

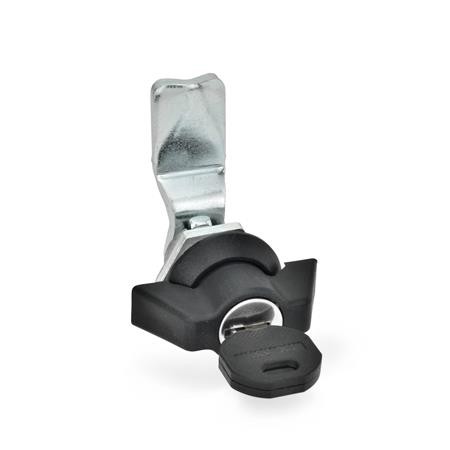

Type SCK - Operation with wing knob (same lock)

Type SUK - Operation with wing knob (different lock)

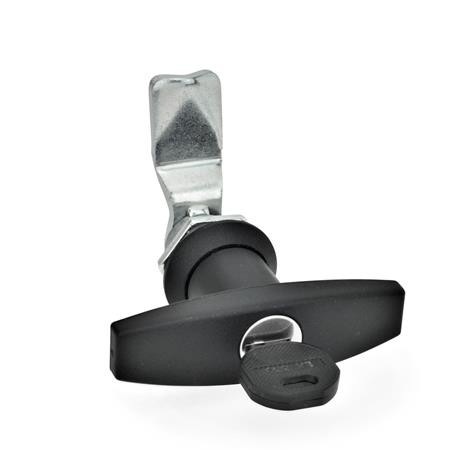

Type SCT - Operation with T-Handle (same lock)

Type SUT - Operation with T-handle (different lock)

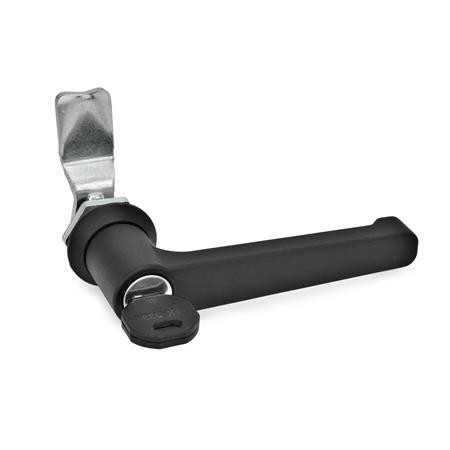

Type LCG - Operation with lever handle (same lock)

Type LUG - Operation with lever handle (different lock)

CAD Viewer Technical Data

Product Description

GN115 Latch, Black Plastic Coated, Lockable

The lockable latch GN 115 locks by a turning operation limited to 90° which moves the locking behind the door frame. The bevels of the locking ease the closing of the door.

Latches with different cranks cover a range A from 4 to 50 mm.

The types with a different lock are available in more than 200 variants, whose keys are marked by numbers.

The delivery includes a separately enclosed latch as well as two keys which are removable in both end positions.

Specification

Lock housing - Zinc die casting

Locating ring - plastic coated, black, RAL 9005, textured finish

All other parts - Steel zinc plated, blue passivated

Key - Nickel silver with plastic hand piece

Wing knob / T-Handle - Plastic (Polyamide PA), black, matt
