GN115 Latch, Stainless Steel with Operating Elements, Not Lockable

CAD Viewer Technical Data

Series Selector


Type RG - Operation with knurled knob GN7336

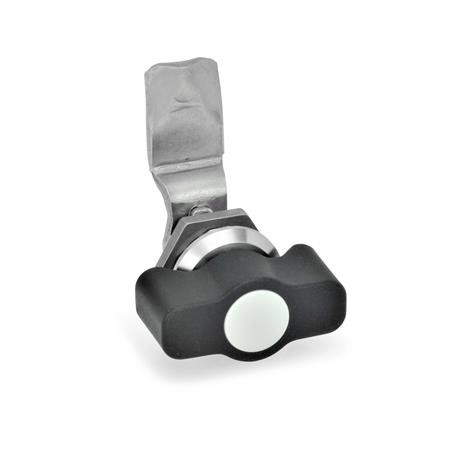

Type KG - Operation with wing knob

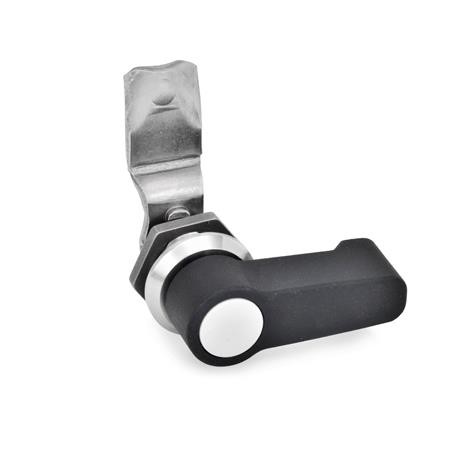

Type HG - Operation with lever

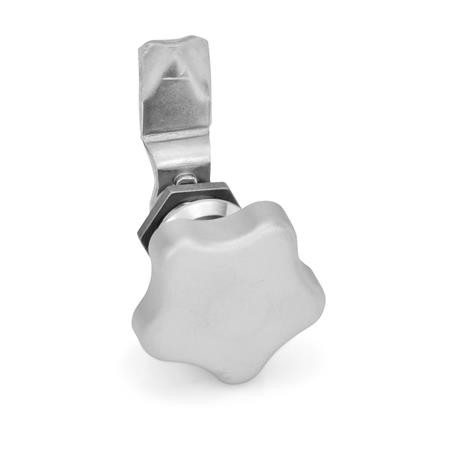

Type SG - Operation with star knob

Type KGN - Operation with stainless steel wing knob

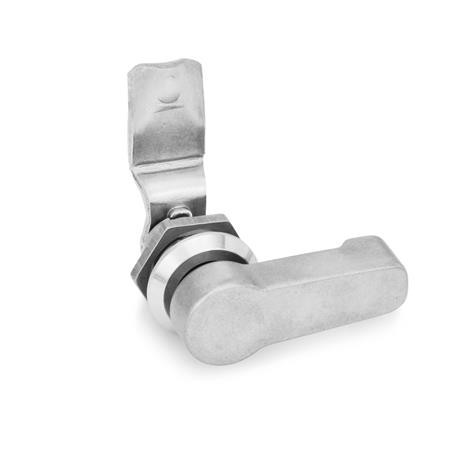

Type HGN - Operation with stainless steel lever

CAD Viewer Technical Data

Product Description

GN115 Latch, Stainless Steel with Operating Elements, Not Lockable

GN 115 Latch Stainless Steel locks by a turning operation, limited to 90°, which moves the locking arm behind the door frame. The bevels of the locking ease the closing of the door.

Latches with different cranks cover a range A from 6 to 28 mm.

The operating bolt is fitted with an O-ring for sealing.

These locks for these latches GN115 are supplied loose.


Lock housing - Stainless steel NI AISI 303

Latch - Stainless Steel AISI 304

Star knob (Type SG) - Stainless Steel AISI CF-8, sheet metal, drawn. Hub, welded.

Operating elements (Type KGN, HGN) - Stainless Steel AISI CF-8

Operating elements (Type RG, KG, HG) - Plastic (Polyamide PA), black, matte

Protection class IP 65


Keys GN119.2
