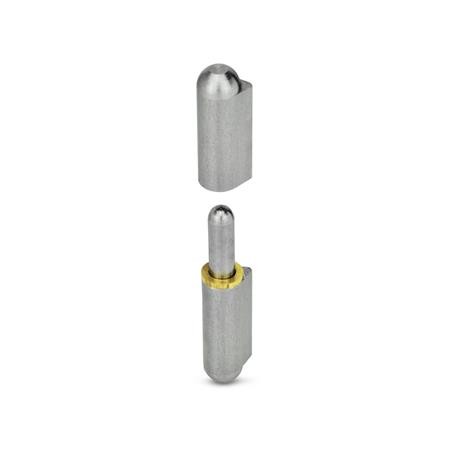

Type ST - with fixed steel pin

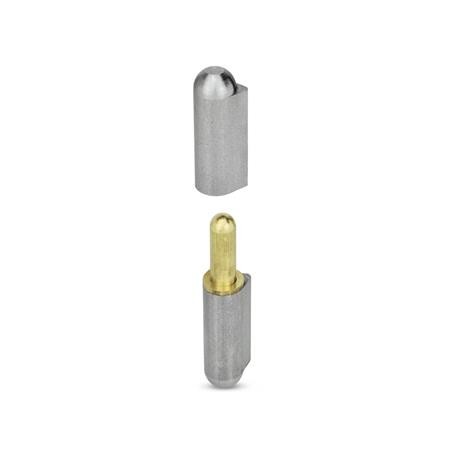

Type MS - with fixed brass pin

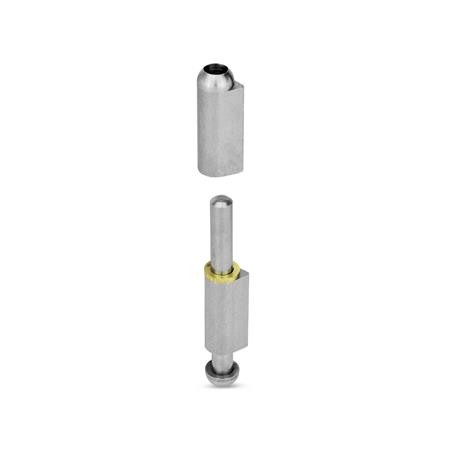

Type STL - with loose steel pin

Type STS - with fixed steel pin and lubricating nipple

CAD Viewer Technical Data

Product Description

GN128 Hinge, Steel, Welded Mount, Optional Lubricating Nipple

Hinges GN 128 are produced from drawn weldable profiled steel extrusions, resulting in a strong, cost effective hinge.

Types ST, STS and MS feature a hinge pin fixed in the lower half of hinge. Type STL with loose steel pin allows easy installation when attaching several hinges in parallel or if the door is very heavy.

The upper half of Type STS hinge has an additional lubricating nipple DIN71412-D which allows the hinges to be lubricated without dismantling the hinges.

Specification

Steel, blank

Pin - Steel. blank (Type ST / STS / STL)

Pin - Brass, turned, blank (Type MS)

Washer - brass

Lubricating nipple DIN 71412-D - steel, zinc plated
