GN1366 Steel Profile Hinges for Welding

CloseNextPrevious



CloseNextPrevious

GN1336: Hinges for Welding
Type: A



CloseNextPrevious

GN1336: Hinges for Welding
Type: S



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type A - Without bores

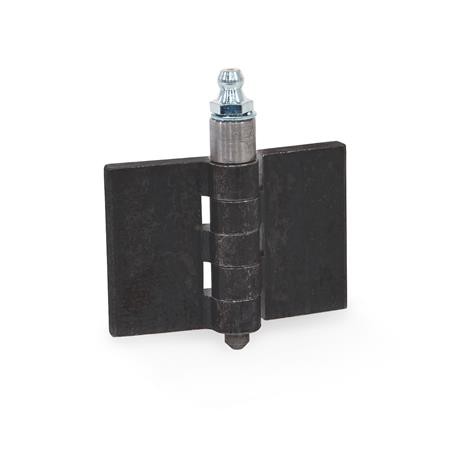

Type S - Without bores, with lubricating nipple

CAD Viewer Technical Data

Product Description

GN1366 Steel Profile Hinges for Welding

Hinges GN 1366 are made of rolled or drawn steel profiles and are very robust.

Type A and S are fastened via welding or holes created by the customer. Type S also has a lubricating nipple, which allows quick and easy relubriacation without dismantling the hinges.

Thanks to the standard dimensions, special application-specific solutions can be realized even in relatively small quantities.

Specification

Steel profile ST - rolled, scaled or drawn, blank BL

Pin - Steel

Type S - Lubricating nipple, similar to DIN 71412-A, steel, zinc plated, blue passivated.

On Request

With a loose pin, with brass pin, with plain bearing bush (bronze), with holes, other dimensions, other finish types
