Product Description

GN138 Hinge, Zinc Die Cast, Plastic Coated, Tamper Proof

These hinges, GN 138, have an attractive design, and are suitable for use in plant and machinery where a well designed, stylish appearance is important. They have a concealed, tamper proof mounting from the rear. This enhances the appearance of the hinge.

The dimensions l1 / l2 and the drill hole spacing's m1 / m2 match the hinges GN237 / GN237.1 and can replace these.

Specification

Zinc die casting, ZD.

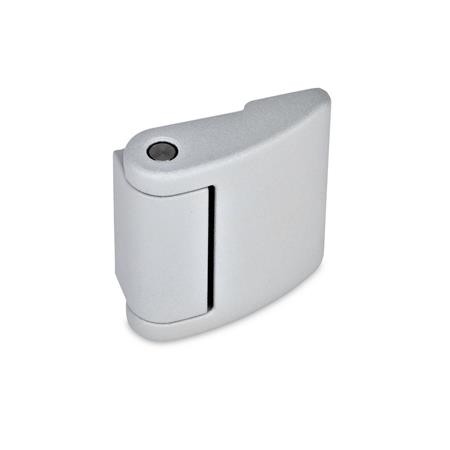

Plastic coated. Black, RAL 9005, textured finish SW. Silver, RAL 9006, textured finish SR.

Pin - Stainless steel AISI 303
