GN702 Stop Lock, Zinc Die Cast, Plastic Handle, with Four Indexing Positions

CloseNextPrevious



CloseNextPrevious

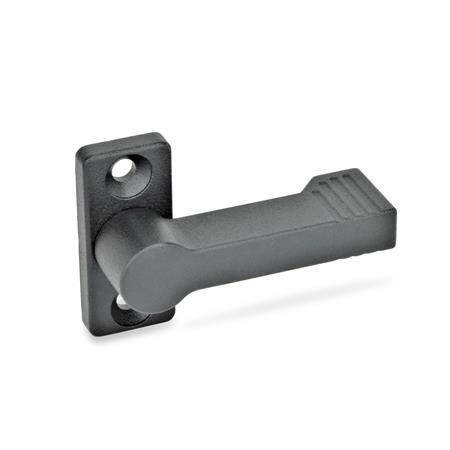

GN702: Stop Lock - Type: A
Colour: RS - Red, Textured Finish



CloseNextPrevious

GN702: Stop Lock - Type: A
Colour: SW - Black, Textured Finish



CloseNextPrevious

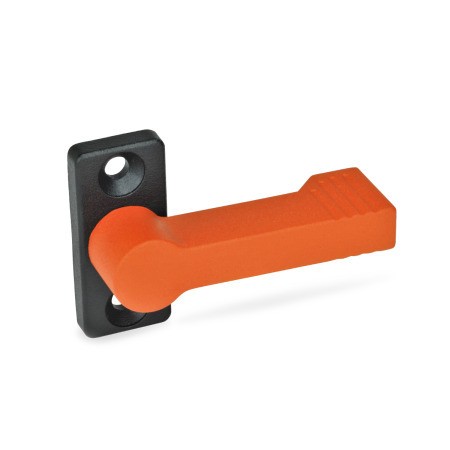

GN702: Stop Lock - Type: A
Colour: OS - Orange, Textured Finish



CloseNextPrevious

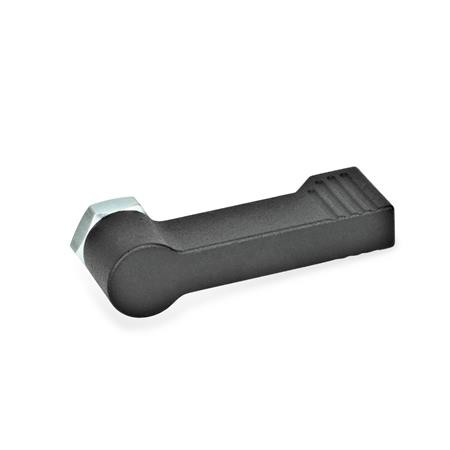

GN702: Stop Lock - Type: B
Colour: RS - Red, Textured Finish



CloseNextPrevious

GN702: Stop Lock - Type: B
Colour: SW - Black, Textured Finish



CloseNextPrevious

GN702: Stop Lock - Type: B
Colour: OS - Orange, Textured Finish



CloseNextPrevious

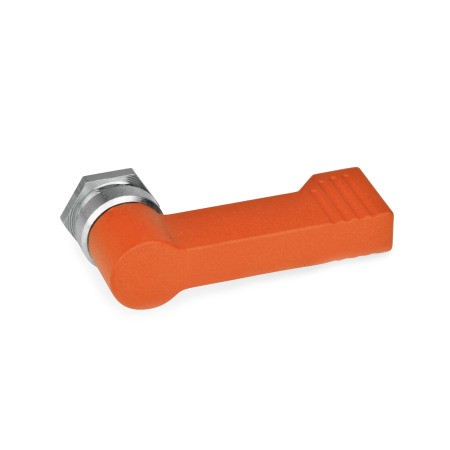

GN702: Stop Lock - Type: C
Colour: RS - Red, Textured Finish



CloseNextPrevious

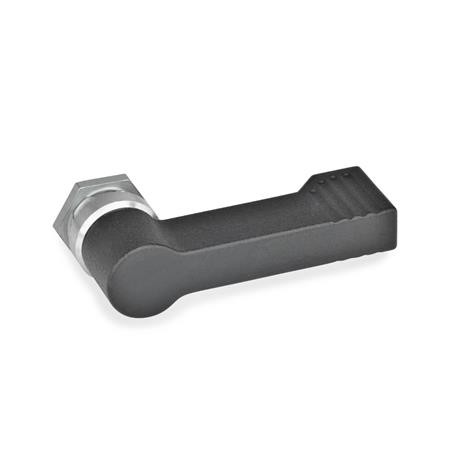

GN702: Stop Lock - Type: C
Colour: SW - Black, Textured Finish



CloseNextPrevious

GN702: Stop Lock - Type: C
Colour: OS - Orange, Textured Finish



CloseNextPrevious

GN702: Stop Lock
Application Example



Choose your Part

Please select desired options to reveal part number, price and availability

d1 Handle diameter

17

l Length

40 55

Type

A B C

Colour

OS RS SW

Options

Type A - with flange for surface mounting

Type B - with internal thread

Type C - with external thread


Product Description

GN702 Stop Lock, Zinc Die Cast, Plastic Handle, with Four Indexing Positions

GN 702 Stop Locks offer a fast and easy way to close and hold doors, flaps, slide-in modules, drawers etc. They lock in four positions at 90 angles. They are perfect for keeping items in place during transit, but allowing quick and easy access: including trolleys, pumps, engines, motors & cable winches. They are particularly suitable for light-weight applications not exposed to dynamic loads.

To mount stop locks Type C, bore holes as shown in the diagram below must be set in the attachment surface.

These mounting holes are usually made by punching or with laser. For small series and steel sheets below 2 mm thickness, the sheet metal punches GN123 are the tool of choice.

The mounting bore holes can also be made by drilling / milling.

Specification

  • Latch - Zinc die casting plastic coated. Black SW RAL 9005, textured finish. Red RS RAL 3000, textured finish, Orange OS, RAL 2004, textured finish.
  • Indexing mechanism
  • Fastening flange - Type A Zinc die casting, plastic coated, black textured finish
  • Hex nut - Type C Steel, zinc plated.

    Application Example.

    Stop Locks GN702 used to secure loads when in transit as shown.
