GN113.30 Ball Lock Pin, Titanium, with Easy Grip Hollow or Handle

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type M - With grip hollow

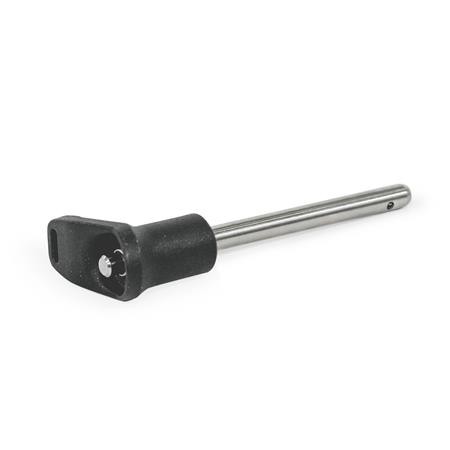

Type L - With L handle

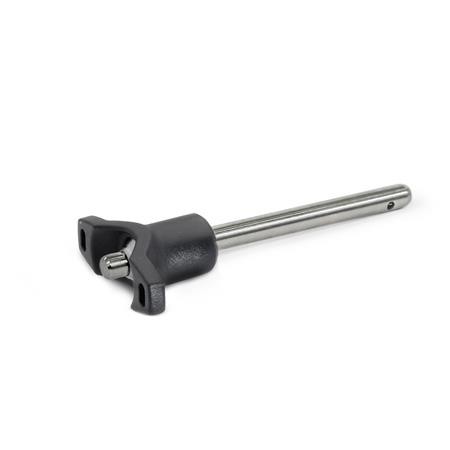

Type T - With T handle

Product Description

GN113.30 Ball Lock Pin, Titanium, with Easy Grip Hollow or Handle

These titanium ball lock pins GN 113.30 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is locating pins which have to be frequently moved and reinstalled.

By pressing the spring loaded push button both balls are unlocked and by releasing it the balls are locked again.

Due to the selected material, ball lock pins GN113.30 are suitable for use in highly corrosive environments. The titanium material also results in a 40% weight reduction compared to a similar part of steel or stainless steel and is both strong and light.

The titanium version is used in lightweight construction, maritime applications and in chemical production.

The technical information contains the load capacities for the double-sided shearing resistance (breaking strength).

Specification

Plunger - titanium

Balls - ceramic

Handle (Type L / T) - plastic (Polyamide PA) black, temerature resistant up to 80° C

Compression Spring - corroision resistant alloy 2.4610

Temerature resistant up to 400°C

Accessories

Stainless steel retaining cable GN111.8

On Request

With round knob
