GN412.3 Positioning Bushings for Indexing Plungers

Standard Machine Elements > Indexing Plungers, Locking pins & Spring Plungers > Indexing Plungers
< Previous Product Next Product >

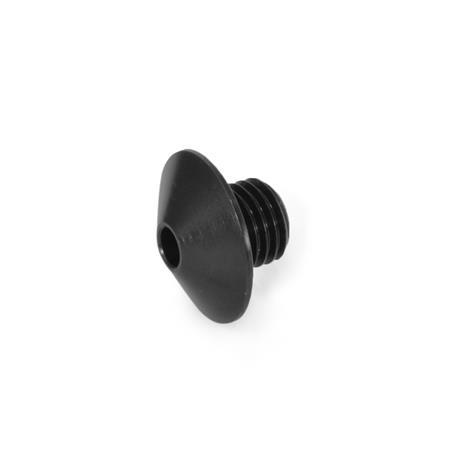

GN412.3 Positioning Bushing, with Ramping Cone





Select Values to Buy:

Tech Spec:



GN412.3 Positioning Bushing, with Ramping Cone, for indexing Plungers

These positioning bushings with ramping cone are used in connection with indexing plungers bolts.

The threads are adapted to the mounting blocks GN412.1 and GN612.1.

Specification

Steel, hardened, blackened

RoHS compliant

Select / Deselect Visible Columns
PartCoded1d2d3d4l1l2l3A/FtMaterialsMass

GN412.3-M16X1,5-B10,20.035
GN412.3-M12X1,5-B5,20.016
GN412.3-M12X1,5-B6,20.016
GN412.3-M16X1,5-B8,20.036
