Indexing Plungers GN617.1 with Rest Position Stainless Steel

All Stainless Steel Products
Standard Machine Elements > Indexing Plungers, Locking pins & Spring Plungers > Indexing Plungers
Standard Machine Elements > Indexing Plungers, Locking pins & Spring Plungers > Indexing Plungers
< Previous Product Next Product >

GN617.1 Indexing Plunger, with Rest Position, Stainless Steel

images/300/GN617.1_Indexing_Plungers_Stainless_steel_drawing_H.png

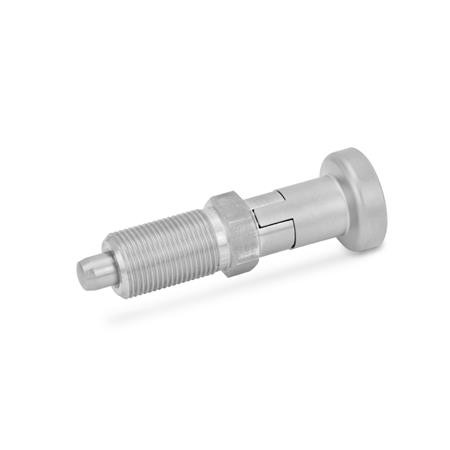

Type AN - without lock nut, with stainless steel knob

Type AKN - with lock nut, with stainless steel knob



Select Values to Buy:

Tech Spec:



GN617.1 Indexing Plunger, with Rest Position, Stainless Steel

These are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.

Specification

Stainless Steel NI AISI 303 - plunger chemically nickel plated

Knob - stainless steel AISI 303, not removable

RoHS compliant

Select / Deselect Visible Columns
PartCoded1TypeMateriald2d3el1l2l3l4l5A/FSpring load in N initialSpring load in N endMass

GN617.1-5-AN-NI5ANNIM10x12113.851517515126150.047
GN617.1-5-AKN-NI5AKNNIM10x12113.851517515126150.04
GN617.1-6-AN-NI6ANNIM12x1,52516.261620617148210.074
GN617.1-6-AKN-NI6AKNNIM12x1,52516.261620617148210.082
GN617.1-8-AN-NI8ANNIM16x1,53121.975.5726823199260.15
GN617.1-8-AKN-NI8AKNNIM16x1,53121.975.5726823199260.17
GN617.1-10-AN-NI10ANNIM20x1,53125.491103310302217400.2
GN617.1-10-AKN-NI10AKNNIM20x1,53125.491103310302217400.24
