GN617.2 Indexing Plunger, Optional Rest, Threaded Plastic Body, Stainless Steel Plunger

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type B - without rest position, without lock nut

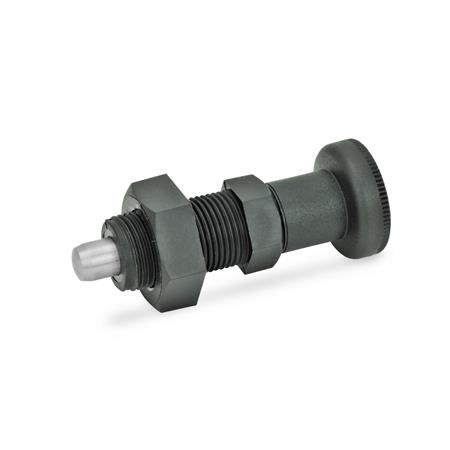

Type BK - without rest position, with lock nut

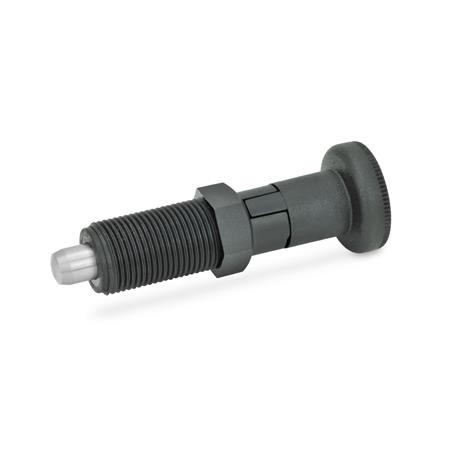

Type C - with rest position, without lock nut

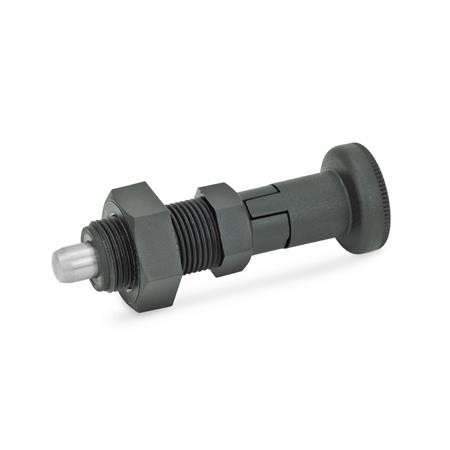

Type CK - with rest position, with lock nut

Product Description

GN617.2 Indexing Plunger, Optional Rest, Threaded Plastic Body, Stainless Steel Plunger

Indexing plungers GN 617.2 with plastic body are a reasonably priced indexing plunger variant. The dimensions correspond to those of the GN617 or GN617.1 indexing plungers.

Indexing plungers Type C / CK with rest position are used for such applications when the plunger has to stay in its retracted position. The plunger stays in this position when the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.

Specification

Threaded body - Plastic (Polyamide PA-HP), glass fibre reinforced, temperature resistant up to 130 °C, black, matte

Plunger - Stainless steel NI AISI 303

Pressure spring - Stainless steel AISI 302

Knob - Plastic (Polyamide PA), black, matte, not removable

Lock nut - Plastic (Polyamide PA-HP), black, matte
