GN716 Side Thrust Pin, Press On Type, for Holding and Locating







Type ENI - one-sided, ball stainless Steel

Type EKU - one-sided, ball plastic

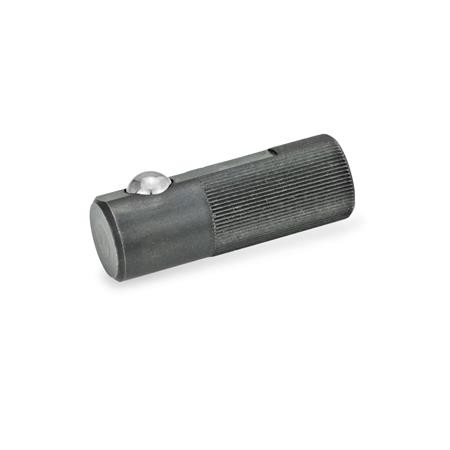

Type EST - one-sided, ball steel

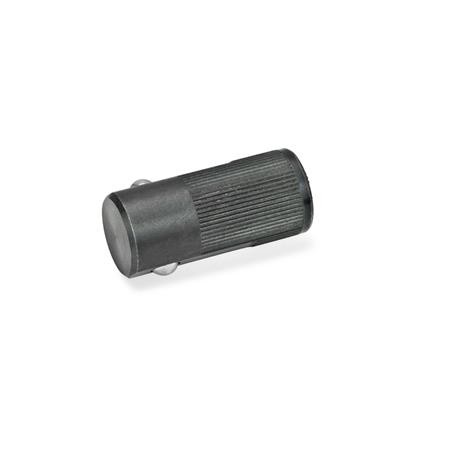

Type BST - both sides, ball steel



Select Values to Buy:

Tech Spec:



GN716 Side Thrust Pin, Press On Type, for Holding and Locating

Spring loaded side thrust pins GN716 are designed to be versatile and practical elements for the holding, positioning and clamping of workpieces by applying lateral pressure. They eliminate costly alternatives, are space saving and easy to install.

They have to be pressed into the housing by at least dimension l3, so as to ensure a positive hold.

If these pins are stored over an extended period the elastomer spring part must be kept load free.

Specification

Housing - Steel, blackened

Sleeve (for ball) - Type ENI/EKU: Plastic, Type EST/BST: Steel, blackened

Ball - Type ENI: Stainless Steel, Type EKU: Plastic, Type EST/BST: Steel

Spring - Type ENI/EKU: Stainless Steel, Type EST/BST: elastic plastic

RoHS compliant



Select / Deselect Visible Columns
Close
Hided1Show
HideTypeShow
Hided2Show
HidebShow
Hidel1Show
Hidel2Show
Hidel3Show
HidesShow
HideSpring load in N initialShow
HideSpring load in N endShow
HideLocation BoreShow
HideMaterialShow
PartCoded1Typed2bl1l2l3sSpring load in N initialSpring load in N endLocation BoreMaterialMass

GN716-8-ENI8ENI33.2253.660.92.56.58ST0.009
GN716-8-EKU8EKU33.2253.660.92.56.58ST0.009
GN716-10-ENI10ENI44304.2714.5910ST0.017
GN716-10-EKU10EKU44304.2714.5910ST0.017
GN716-12-ENI12ENI55354.891.56.51312ST0.029
GN716-12-EKU12EKU55354.891.56.51312ST0.029
GN716-14-ENI14ENI6.55.4405.8101.881814ST0.043
GN716-14-EKU14EKU6.55.4405.8101.881814ST0.043
GN716-10-EST10EST5.54.5307815016010ST0.009
GN716-12-EST12EST6.55.535891.56027012ST0.013
GN716-14-EST14EST86.540910210038014ST0.019
GN716-16-BST16BST5.515357111.53619016ST0.02
GN716-18-BST18BST6.517408121.83827018ST0.027
GN716-22-BST22BST821459152.54041022ST0.043
