GN717 Indexing Plungers Stainless Steel lifting ring wire loop

Standard Machine Elements > Indexing Plungers, Locking pins & Spring Plungers > Indexing Plungers
< Previous Product Next Product >

GN717 Indexing Plunger, Lifting Ring or Wire Loop


Type A - with lifting ring, without locknut

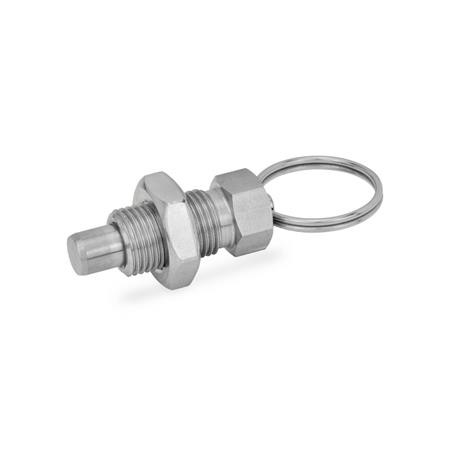

Type AK - with lifting ring, with locknut

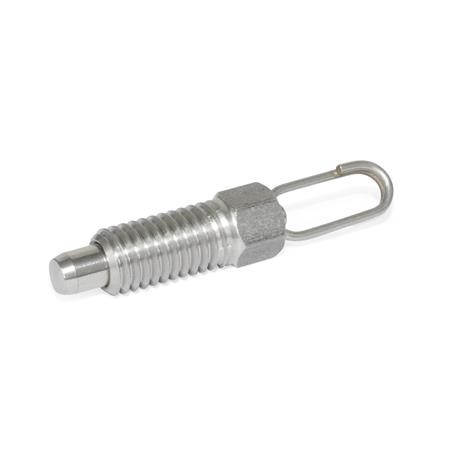

Type D - with wire loop, without locknut

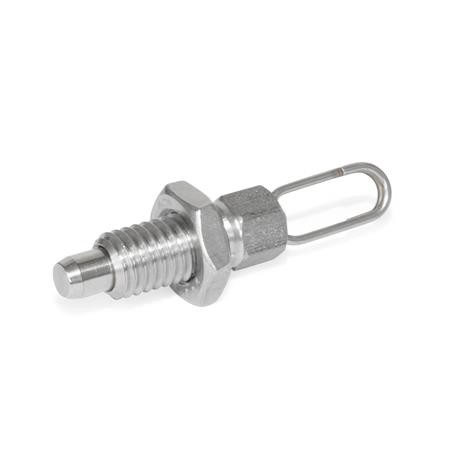

Type DK - with wire loop, with locknut

Select Values to Buy:

Tech Spec:


GN717 Indexing Plunger, Lifting Ring or Wire Loop

This range of low cost indexing plungers are a budget option with small dimensions. GN 717 represent excellent value for money. Their use should, however be limited to such applications where high precision indexing is not required. These versatile plungers make many jobs easier, faster and more efficient and are ideal for prevention of misalignments and positioning errors of the mating indexing bores. They are available with either a stainless steel lifting ring or a plastic knob - GN717.

During assembly, the maximum tightening torques shown in the table should not be exceeded when securing the lock nut.


Guide (Threaded body) - Stainless Steel NI, zinc plated, blue passivated.

Plunger - Stainless Steel AISI 303

Spring - Stainless Steel AISI 301

Lifting ring / Wire loop - Stainless Steel AISI 301

RoHS compliant
