GN817.2 Indexing Plungers long knob rest position lock nut

Standard Machine Elements > Indexing Plungers, Locking pins & Spring Plungers > Indexing Plungers
< Previous Product Next Product >

GN817.2 Indexing Plunger, Long Plastic Knob, Steel



Type B - without rest position, without locknut

Type BK - without rest position, with locknut

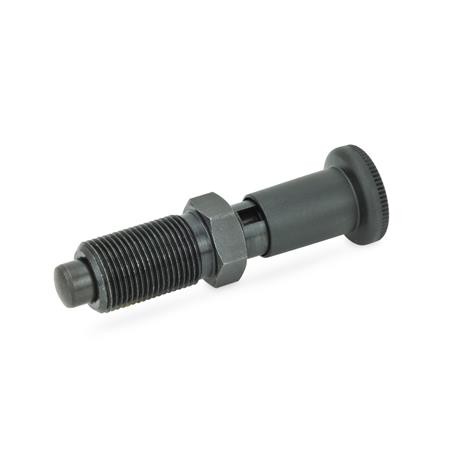

Type C - with rest position, without locknut

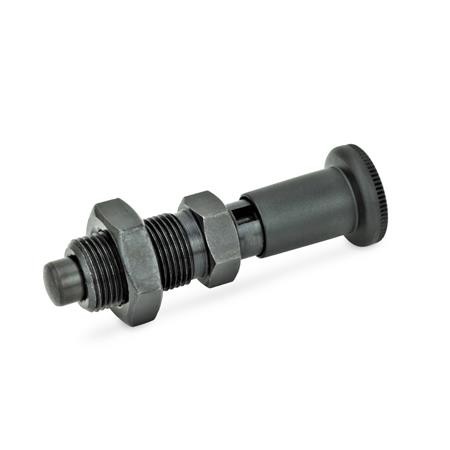

Type CK - with rest position, with locknut

Select Values to Buy:

Tech Spec:


GN817.2 Indexing Plunger, Long Plastic Knob, Steel

These indexing plungers correspond to GN817, they only differ by having a longer knob.

Type C/CK are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90 degrees after being retracted. A notch keeps the plunger in this position.

Specification

Steel - blackened

Plunger - tempered

Knob - Plastic (Polyamid PA), black, matt, not removable

RoHS compliant

Select / Deselect Visible Columns
PartCoded1l1TypeMateriald2d3kl2l3l4A/FSpring load
in
N initial
Spring load
in
N end
Mass

GN817.2-4-4-B44BSTM8x1162142165104.5120.011
GN817.2-4-4-BK44BKSTM8x1162142165104.5120.015
GN817.2-4-4-C44CSTM8x1162142165104.5120.012
GN817.2-4-4-CK44CKSTM8x1162142165104.5120.02
GN817.2-4-6-B46BSTM8x116214216510412.50.01
GN817.2-4-6-BK46BKSTM8x116214216510412.50.014
GN817.2-4-6-C46CSTM8x116214216510412.50.024
GN817.2-4-6-CK46CKSTM8x116214216510412.50.016
GN817.2-5-5-B55BSTM10x1192448186125150.02
GN817.2-5-5-BK55BKSTM10x1192448186125150.024
GN817.2-5-5-C55CSTM10x1192448186125150.15
GN817.2-5-5-CK55CKSTM10x1192448186125150.02
GN817.2-5-8-B58BSTM10x1192448186125180.019
GN817.2-5-8-BK58BKSTM10x1192448186125180.02
GN817.2-5-8-C58CSTM10x1192448186125180.02
GN817.2-5-8-CK58CKSTM10x1192448186125180.026
GN817.2-6-6-B66BSTM12x1,5233058226146.5190.04
GN817.2-6-6-BK66BKSTM12x1,5233058226146.5190.04
GN817.2-6-6-C66CSTM12x1,5233058226146.5190.035
GN817.2-6-6-CK66CKSTM12x1,5233058226146.5190.04
GN817.2-6-9-B69BSTM12x1,5233058226146250.035
GN817.2-6-9-BK69BKSTM12x1,5233058226146250.02
GN817.2-6-9-C69CSTM12x1,5233058226146250.025
GN817.2-6-9-CK69CKSTM12x1,5233058226146250.04
GN817.2-8-8-B88BSTM16x1,5283670268178.5260.06
GN817.2-8-8-BK88BKSTM16x1,5283670268178.5260.08
GN817.2-8-8-C88CSTM16x1,5283670268178.5260.07
GN817.2-8-8-CK88CKSTM16x1,5283670268178.5260.08
GN817.2-8-12-B812BSTM16x1,5283670268178.5280.06
GN817.2-8-12-BK812BKSTM16x1,5283670268178.5280.07
GN817.2-8-12-C812CSTM16x1,5283670268178.5280.07
GN817.2-8-12-CK812CKSTM16x1,5283670268178.5280.088
GN817.2-10-12-B1012BSTM16x1,5283670268179.5380.07
GN817.2-10-12-BK1012BKSTM16x1,5283670268179.5380.083
GN817.2-10-12-C1012CSTM16x1,5283670268179.5380.008
GN817.2-10-12-CK1012CKSTM16x1,5283670268179.5380.08
GN817.2-12-15-B1215BSTM20x1,528367933102211.5400.12
GN817.2-12-15-BK1215BKSTM20x1,528367933102211.5400.14
GN817.2-12-15-C1215CSTM20x1,528367933102211.5400.14
GN817.2-12-15-CK1215CKSTM20x1,528367933102211.5400.16
#74962.7~74966.51#

Also available in stainless steel.
