GN817.4 Indexing Plunger, with T Handle, Steel



Type B - without rest position, without lock nut

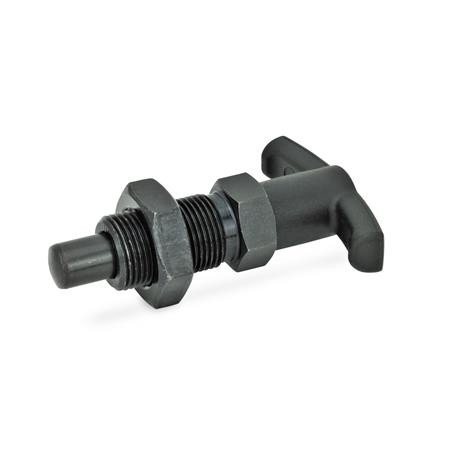

Type BK - without rest position, with lock nut

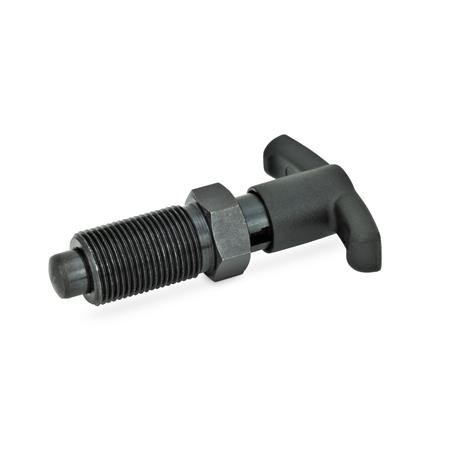

Type C - with rest position, without lock nut

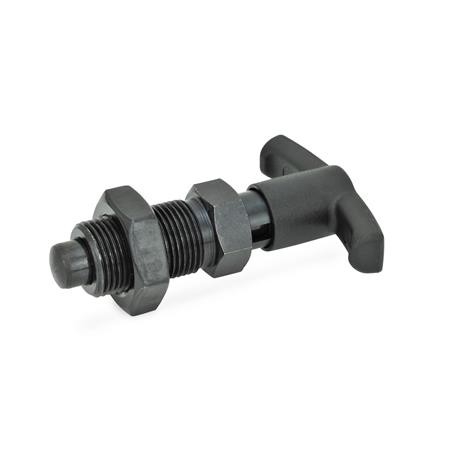

Type CK - with rest position, with lock nut

Select Values to Buy:

Tech Spec:



GN817.4 Indexing Plungers, with T Handle, Steel

These indexing plungers are similar to GN817, but with a T-handle instead of a round head.

This shape allows better visual orientation of the indexing position of Type C and is advantageous when greater unlocking forces occur.

Type C with rest position is used in such applications where the plunger must not protrude continually. In that case the knob is retracted and afterwards turned by 90. A notch keeps the plunger in this position.

Specification

Steel - blackened

Plunger - hardened

T-Handle - Plastic (Polyamide PA), not removable, black, matt.

RoHS compliant

Select / Deselect Visible Columns
PartCoded1l1TypeMateriald2kl2l3l4l5A/FSpring load
in
N initial
Spring load
in
N end
Mass

GN817.4-6-6-B66BSTM12x1,5204822654146.5190.031
GN817.4-6-6-BK66BKSTM12x1,5204822654146.5190.04
GN817.4-6-6-C66CSTM12x1,5204822654146.5190.033
GN817.4-6-6-CK66CKSTM12x1,5204822654146.5190.042
GN817.4-6-9-B69BSTM12x1,5204822654146250.031
GN817.4-6-9-BK69BKSTM12x1,5204822654146250.04
GN817.4-6-9-C69CSTM12x1,5204822654146250.034
GN817.4-6-9-CK69CKSTM12x1,5204822654146250.04
GN817.4-8-8-B88BSTM16x1,5255926859178.5260.064
GN817.4-8-8-BK88BKSTM16x1,5255926859178.5260.08
GN817.4-8-8-C88CSTM16x1,5255926859178.5260.068
GN817.4-8-8-CK88CKSTM16x1,5255926859178.5260.086
GN817.4-8-12-B812BSTM16x1,5255926859178.5280.065
GN817.4-8-12-BK812BKSTM16x1,5255926859178.5280.078
GN817.4-8-12-C812CSTM16x1,5255926859178.5280.071
GN817.4-8-12-CK812CKSTM16x1,5255926859178.5280.08
GN817.4-10-12-B1012BSTM16x1,5255926859179.5380.066
GN817.4-10-12-BK1012BKSTM16x1,5255926859179.5380.08
GN817.4-10-12-C1012CSTM16x1,5255926859179.5380.072
GN817.4-10-12-CK1012CKSTM16x1,5255926859179.5380.078
GN817.4-12-15-B1215BSTM20x1,525683310592211.5400.12
GN817.4-12-15-BK1215BKSTM20x1,525683310592211.5400.15
GN817.4-12-15-C1215CSTM20x1,525683310592211.5400.127
GN817.4-12-15-CK1215CKSTM20x1,525683310592211.5400.16
#66652.41~66655.36#



Also available in stainless steel
