GN817 GN 817 Indexing plungers stainless steel red knob notch

All Stainless Steel Products
Standard Machine Elements > Indexing Plungers, Locking pins & Spring Plungers > Indexing Plungers
< Previous Product Next Product >

GN817 Indexing Plunger, Stainless Steel, Red Plastic Knob





Type B - without lock nut, without rest position.

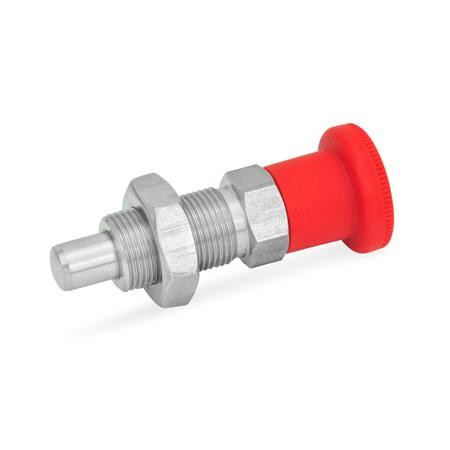

Type BK - with lock nut, without rest position.

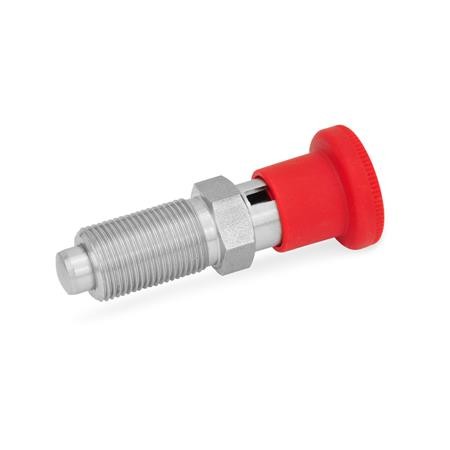

Type C - without lock nut, with rest position

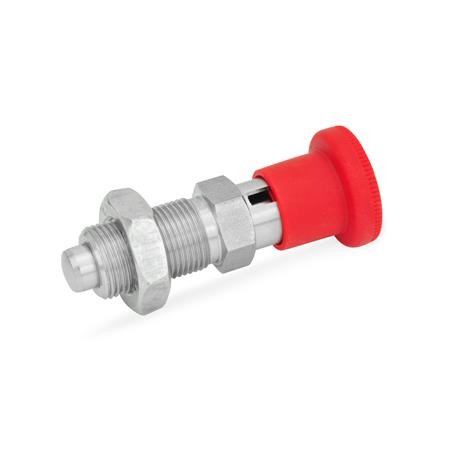

Type CK - with lock nut, with rest position.

Select Values to Buy:

Tech Spec:



GN 817 Indexing Plunger, Stainless Steel, Red Plastic Knob

Stainless steel indexing plungers with rest position (Type C/CK) are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90 degrees after being retracted. A notch keeps the plunger in this position.

Specification

Stainless Steel NI - AISI 303

Plunger pin - chemically nickel plated

Knob - Plastic Technopolymer (Polyamide PA), red RT, RAL 3000, not removable

RoHS compliant

Select / Deselect Visible Columns
PartCoded1l1TypeMaterialColourd2d3kl2l3l4A/FSpring load
in
N initial
Spring load
in
N end
Mass

GN817-4-4-B-NI-RT44BNIRTM8x1161435165104.5120.011
GN817-4-4-BK-NI-RT44BKNIRTM8x1161435165104.5120.013
GN817-4-4-C-NI-RT44CNIRTM8x1161435165104.5120.011
GN817-4-4-CK-NI-RT44CKNIRTM8x1161435165104.5120.02
GN817-4-6-B-NI-RT46BNIRTM8x116143516510412.50.01
GN817-4-6-BK-NI-RT46BKNIRTM8x116143516510412.50.01
GN817-4-6-C-NI-RT46CNIRTM8x116143516510412.50.012
GN817-4-6-CK-NI-RT46CKNIRTM8x116143516510412.50.015
GN817-5-5-B-NI-RT55BNIRTM10x1191640186125150.018
GN817-5-5-BK-NI-RT55BKNIRTM10x1191640186125150.024
GN817-5-5-C-NI-RT55CNIRTM10x1191640186125150.054
GN817-5-5-CK-NI-RT55CKNIRTM10x1191640186125150.026
GN817-5-8-B-NI-RT58BNIRTM10x1191640186125180.018
GN817-5-8-BK-NI-RT58BKNIRTM10x1191640186125180.025
GN817-5-8-C-NI-RT58CNIRTM10x1191640186125180.02
GN817-5-8-CK-NI-RT58CKNIRTM10x1191640186125180.025
GN817-6-6-B-NI-RT66BNIRTM12x1,5232048226146.5190.029
GN817-6-6-BK-NI-RT66BKNIRTM12x1,5232048226146.5190.038
GN817-6-6-C-NI-RT66CNIRTM12x1,5232048226146.5190.032
GN817-6-6-CK-NI-RT66CKNIRTM12x1,5232048226146.5190.04
GN817-6-9-B-NI-RT69BNIRTM12x1,5232048226146250.029
GN817-6-9-BK-NI-RT69BKNIRTM12x1,5232048226146250.038
GN817-6-9-C-NI-RT69CNIRTM12x1,5232048226146250.034
GN817-6-9-CK-NI-RT69CKNIRTM12x1,5232048226146250.04
GN817-8-8-B-NI-RT88BNIRTM16x1,5282458268178.5260.062
GN817-8-8-BK-NI-RT88BKNIRTM16x1,5282458268178.5260.08
GN817-8-8-C-NI-RT88CNIRTM16x1,5282458268178.5260.066
GN817-8-8-CK-NI-RT88CKNIRTM16x1,5282458268178.5260.085
GN817-8-12-B-NI-RT812BNIRTM16x1,5282458268178.5280.062
GN817-8-12-BK-NI-RT812BKNIRTM16x1,5282458268178.5280.08
GN817-8-12-C-NI-RT812CNIRTM16x1,5282458268178.5280.069
GN817-8-12-CK-NI-RT812CKNIRTM16x1,5282458268178.5280.087
GN817-10-12-B-NI-RT1012BNIRTM16x1,5282458268179.5380.063
GN817-10-12-BK-NI-RT1012BKNIRTM16x1,5282458268179.5380.065
GN817-10-12-C-NI-RT1012CNIRTM16x1,5282458268179.5380.069
GN817-10-12-CK-NI-RT1012CKNIRTM16x1,5282458268179.5380.079
GN817-12-15-B-NI-RT1215BNIRTM20x1,53328.571.533102211.5400.117
GN817-12-15-BK-NI-RT1215BKNIRTM20x1,53328.571.533102211.5400.151
GN817-12-15-C-NI-RT1215CNIRTM20x1,53328.571.533102211.5400.125
GN817-12-15-CK-NI-RT1215CKNIRTM20x1,53328.571.533102211.5400.151
GN817-16-20-C-NI-RT0.219
GN817-16-20-BK-NI-RT0.28
GN817-16-20-CK-NI-RT0.276
GN817-16-20-B-NI-RT0.065
#83699.77~83703.73#

Standard part number GN818 has been changed! Because of a change of the standard part number your input is no longer valid. Your search was automatically changed to the new standard part number GN817.
