GN817 Indexing Plunger, Steel, Red Knob

CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

Type B - without rest position, without locknut.

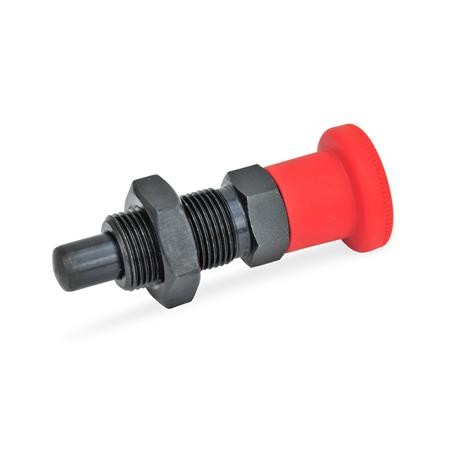

Type BK - without rest position, with locknut.

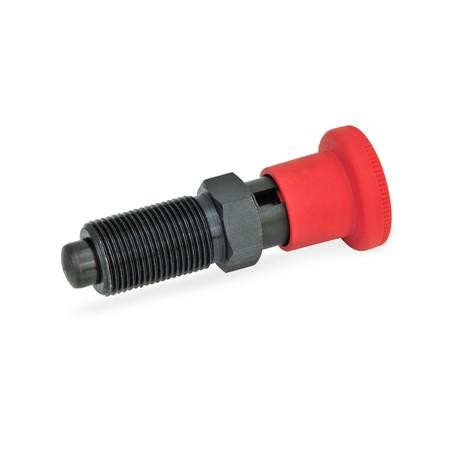

Type C - with rest position, without lock nut.

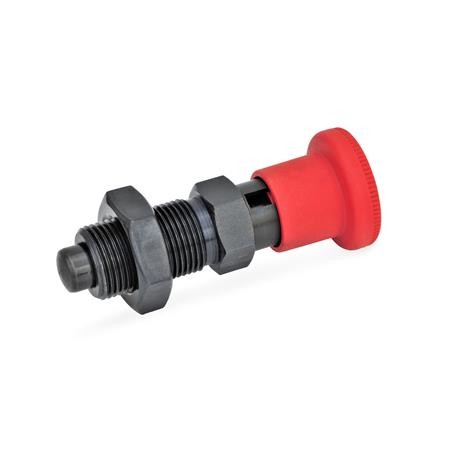

Type CK - with rest position, with lock nut

CAD Viewer Technical Data

Product Description

GN817 Indexing Plunger, Steel, Red Knob

These indexing plungers, GN 817, with rest position (Type C/CK) are used for applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90 degrees after being retracted. A notch keeps the plunger in this position.

Specification

Steel ST, blackened

Plunger pin - hardened

Knob - Plastic, Technopolymer (Polyamide PA), red RT RAL 3000, not removable.
