GN822.12 Mini Indexing Plunger, Stainless Steel, with Flange for Surface Mounting, Optional Rest Position

Choose your Part

Please select desired options to reveal part number, price and availability

Options

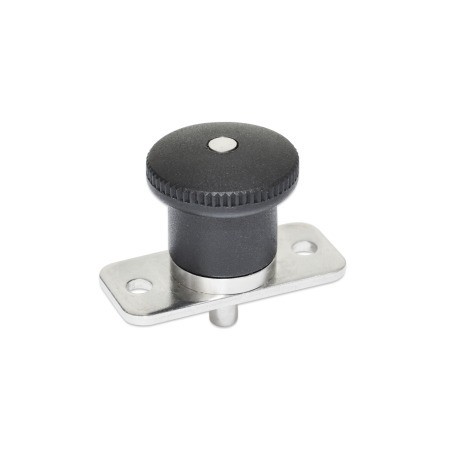

Type B - without rest position, with plastic knob

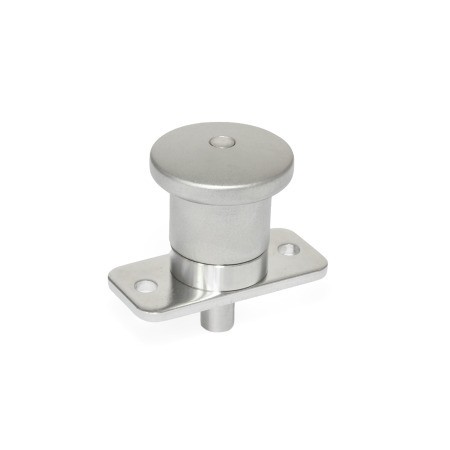

Type BN - without rest position, with stainless steel knob

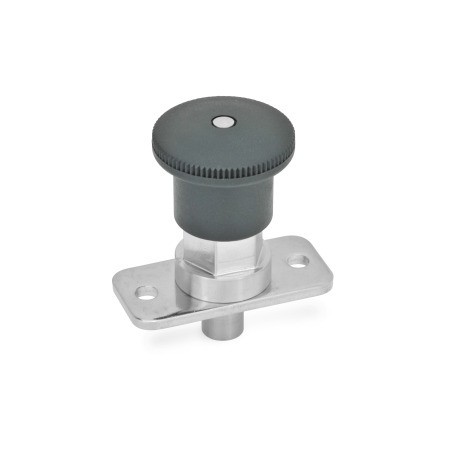

Type C - with rest position

Type CN - with rest position, with stainless steel knob

Product Description

GN822.12 Mini Indexing Plunger, Stainless Steel, with Flange for Surface Mounting, Optional Rest Position

Stainless steel mini indexing plungers GN 822.12 are notable for their small dimensions, which are ideal in restricted spaces.

In types C and CN, the button can be turned by 30° after retracting the indexing pin, holding it in the retraced position using the indexing lock.

Specification

• Guide / Plunger pin - Stainless steel AISI 316L
• Knob - not removable
• Plastic, polyamide (PA) for Types B / C. Black, matte finish.
• Stainless steel AISI 316 for Types BN / CN Matt shot blasted
• Pressure spring - Stainless steel AISI 316 Ti

On Request

With red knob.
