Standard Machine Elements > Indexing Plungers, Locking pins & Spring Plungers > Indexing Plungers
< Previous Product Next Product >

GN822.7 Mini Indexing Plunger, All Stainless Steel



images/615/GN-822_7_Mini_Indexing_Plunger_All_Stainless_Steel_drawing_W.gif

Type BN - without rest position, with Stainless Steel knob

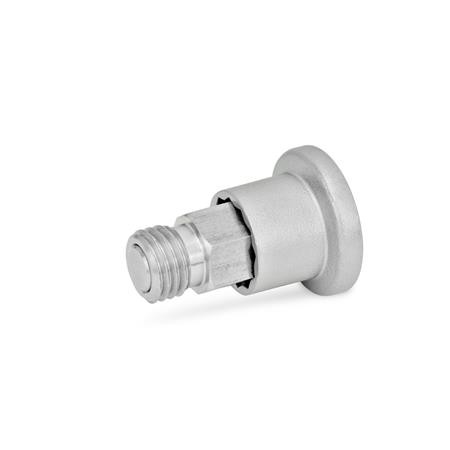

Type CN - with rest position, with Stainless Steel knob



Select Values to Buy:

Tech Spec:



GN822.7 Mini Indexing Plunger, All Stainless Steel

These mini indexing plungers are notable for their small dimensions. Being made from stainless steel, they are ideal in clean room environments, such as in the food, medical and pharmaceutical industries, and the processing and packaging of these.

Based on the same principle as mini indexing plungers GN822, this model combines their clever construction with a complete series of all current sizes of bolts and threads. They provide a reasonably priced alternative to the GN607 / GN607.1 indexing plungers in the related sizes.

The spanner flats on the lock nut are revealed when retracting the pin, so that the mini indexing plunger can be easily tightened by means of a fork spanner.

To mount, first turn the mini indexing plunger in with the knurled button. Pulling the indexing pin will release the hexagon nut which can then be tightened with an open end spanner. The spanner flats on the lock nut are revealed when retracting the pin, so that the mini indexing plunger can be easily tightened by means of a fork spanner.

In Type CN, the button can be turned by 30° after retracting the indexing pin, holding it in the retracted position using the indexing lock.

Specification

Socket - Stainless Steel NI AISI 303
Plunger - Stainless Steel NI AISI 303
Spring - Stainless Steel NI AISI 301
Knob - AISI 305, matt, blasted

RoHS compliant

Select / Deselect Visible Columns
PartCoded1d2TypeMateriald3d4l1l2l3kA/FSpring load
in
N initial
Spring load
in
N end
Mass

GN822.7-4-M8-BN4M8BNNI211527.55616.5104120.028
GN822.7-4-M8-CN4M8CNNI211527.55616.5104120.027
GN822.7-4-M8X1-BN4M8x1BNNI211527.55616.5104120.028
GN822.7-4-M8X1-CN4M8x1CNNI211527.55616.5104120.028
GN822.7-5-M10-BN5M10BNNI2518346820126160.046
GN822.7-5-M10-CN5M10CNNI2518346820126160.048
GN822.7-5-M10X1-BN5M10x1BNNI2518346820126160.049
GN822.7-5-M10X1-CN5M10x1CNNI2518346820126160.048
GN822.7-6-M10-BN6M10BNNI2518346820126160.049
GN822.7-6-M10-CN6M10CNNI2518346820126160.048
GN822.7-6-M10X1-BN6M10x1BNNI2518346820126160.05
GN822.7-6-M10X1-CN6M10x1CNNI2518346820126160.049
GN822.7-6-M12-BN6M12BNNI282040.571023.51410230.074
GN822.7-6-M12-CN6M12CNNI282040.571023.51410230.072
GN822.7-6-M12X1,5-BN6M12x1,5BNNI282040.571023.51410230.074
GN822.7-6-M12X1,5-CN6M12x1,5CNNI282040.571023.51410230.073
GN822.7-7-M12-BN7M12BNNI282040.571023.51410230.074
GN822.7-7-M12-CN7M12CNNI282040.571023.51410230.073
GN822.7-7-M12X1,5-BN7M12x1,5BNNI282040.571023.51410230.075
GN822.7-7-M12X1,5-CN7M12x1,5CNNI282040.571023.51410230.074
GN822.7-8-M16-BN8M16BNNI332347.5101225.51711350.112
GN822.7-8-M16-CN8M16CNNI332347.5101225.51711350.1
GN822.7-8-M16X1,5-BN8M16x1,5BNNI332347.5101225.51711350.113
GN822.7-8-M16X1,5-CN8M16x1,5CNNI332347.5101225.51711350.111
GN822.7-10-M16-BN10M16BNNI332347.5101225.51711350.114
GN822.7-10-M16-CN10M16CNNI332347.5101225.51711350.011
GN822.7-10-M16X1,5-BN10M16x1,5BNNI332347.5101225.51711350.11
GN822.7-10-M16X1,5-CN10M16x1,5CNNI332347.5101225.51711350.113
