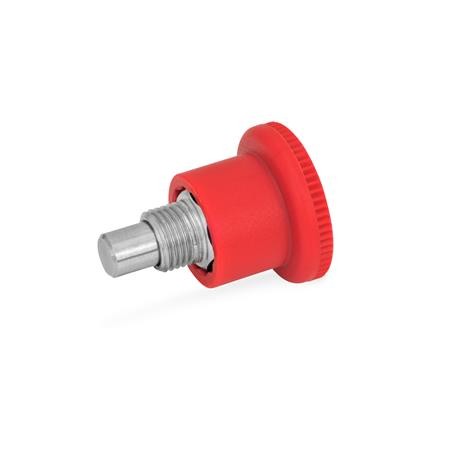

GN822 Mini Indexing Plunger, Covered Indexing Mechanism

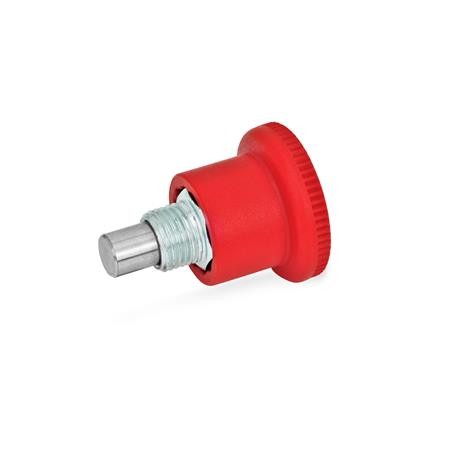

Type B - without rest position

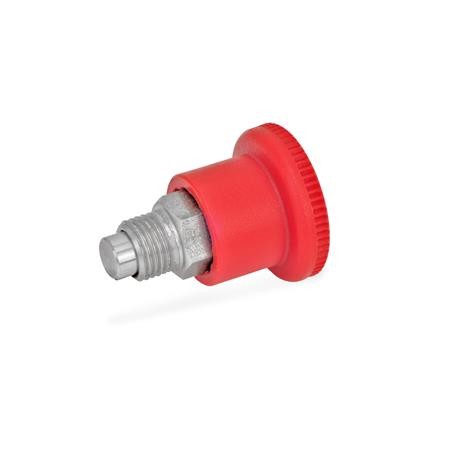

Type C - with rest position

Select Values to Buy:

Tech Spec:



GN822 Mini Indexing Plunger, Covered Indexing Mechanism

Mini indexing plungers GN822 are known for their small dimensions. They have been designed for installation in thin walled sheet metal constructions.

They are inserted into position by holding them by the serrated knob. The spanner flats on the lock nut are revealed when retracting the pin, so that the mini indexing plunger can be easily tightened by means of a fork spanner.

Specification

Steel ST, zinc plated, blue passivated, Stainless Steel NI AISI 303

Plunger - Stainless Steel AISI 303, Spring, Stainless Steel NI AISI 303

Spring - Stainless Steel AISI 301

Knob Plastic - Technopolymer (Polyamide PA), red, RAL 3000 RT RT not removable.

RoHS compliant

Select / Deselect Visible Columns
PartCoded1TypeMateriald2d3d4l1l2l3l4A/FSpring load
in
N initial
Spring load
in
N end
Mass

GN822-4-B-NI-RT0.013
GN822-4-C-NI-RT0.01
GN822-4-C-ST-RT0.013
GN822-5-B-NI-RT0.014
GN822-5-B-ST-RT0.143
GN822-5-C-NI-RT0.02
GN822-5-C-ST-RT0.014
GN822-6-B-NI-RT0.025
GN822-6-C-NI-RT0.024
GN822-6-C-ST-RT0.024
GN822-7-B-NI-RT0.02
GN822-7-B-ST-RT0.026
GN822-7-C-NI-RT0.03
GN822-7-C-ST-RT0.025
