DIN319 KU Type L 3D CAD Model
DIN319 KT Type M 3D CAD Model

Close
Close

DIN319 Ball Knob, Plastic, Press On Type

CloseNextPrevious



CloseNextPrevious

DIN319: Ball Knob - Material: KT

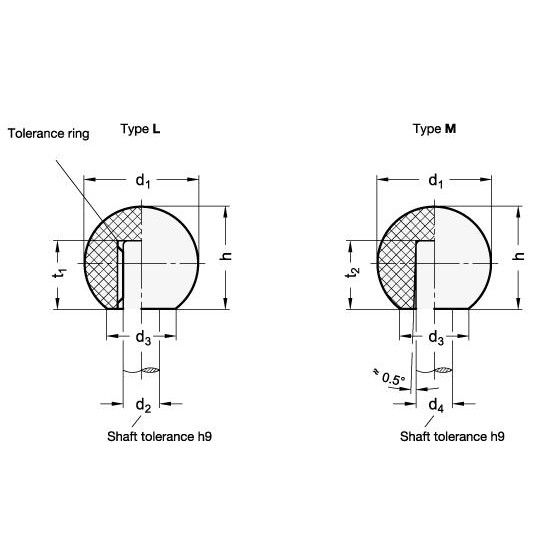

Type: M - with Tapered Bore



CloseNextPrevious

DIN319: Ball Knob - Material: KU
Type: L - with Tolerance Ring



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type L - with tolerance ring

Type M - with tapered bore

Type KN - with Plain Hole H11

CAD Viewer Technical Data

Product Description

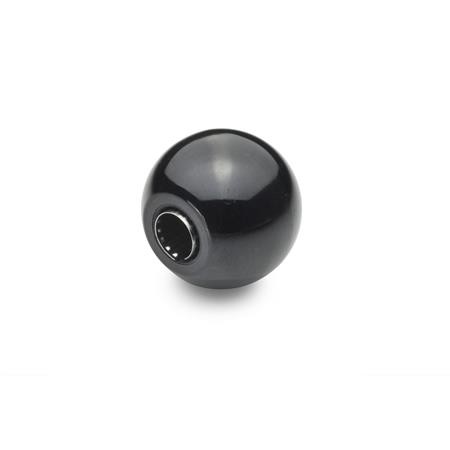

DIN319 Plastic Press On Ball Knob

Ball knobs/handles are a commonplace component used for many applications, and have a classic design which has stood the test of time. They are designed to fit snugly into the palm of the hand for comfortable usage.

The DIN 319 ball knobs type L and M are used on shafts without a thread. They have a comfortable, modern design, ideal for use on crank handles, handwheels & levers.

During mounting, gentle blows with a soft hammer are sufficient to drive the knob into place; the shaft end should be slightly rounded or chamfered (30°).

Before the assembly of type L knobs, the tolerance ring is to be inserted into the drilling. When assembling, ensure that the button is perpendicular and/or axially parallel to prevent breakage of the knob.

Type M ball knobs are a cheaper option, however, the pulling-off force is less predictable.

Specification

  • Plastic Knob - Duroplast (Phenolic PF) KU, black, shiny finish.
  • Tolerance Ring – Spring steel.
  • Plastic Handle - Technopolymer (Polyamide PA) KT, shock resistant, black, matt finish.

On Request

Red version

Related Series
