Product Description

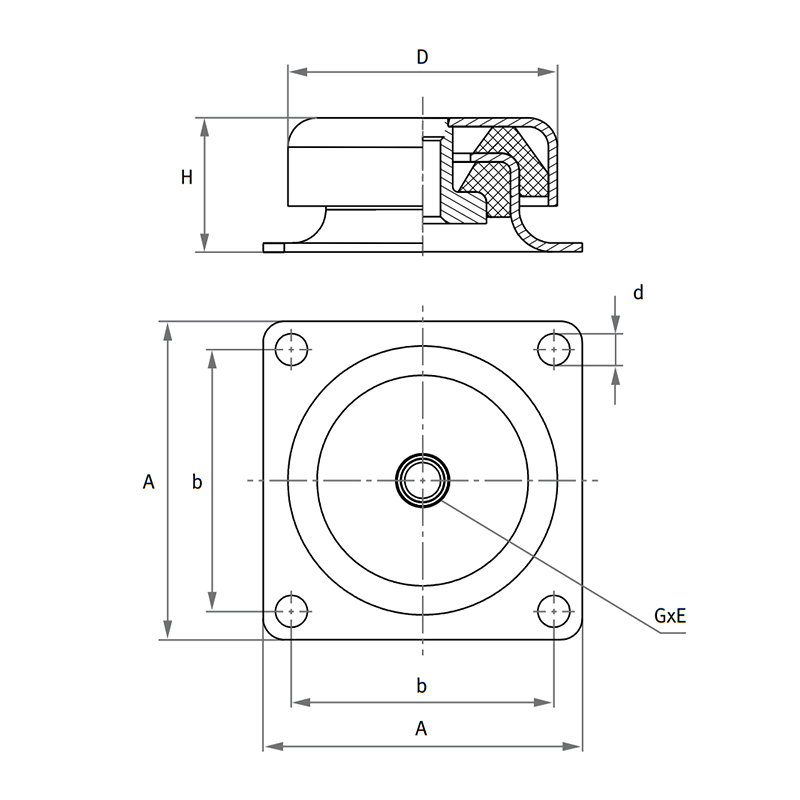

CP Series Universal Machine Support
Due to their robust design, the oil-resistant CP (Cup Mount) series is ideally suited as a support element for motors and aggregates.
These cup mount supports are designed to protect against shearing and provide both passive and active support.
Oil and ageing resistant, a robust support element for motors, aggregates and similar equipment the Cup Mount (CP) series have a tear-resistant design which reliably withstands pressure, tensile and thrust loads, ensuring the desired vibration isolation, impact isolation, structure-borne noise insulation and structure-borne noise damping, even while in motion. These cup mount elements are often used as support elements for machines, equipment, motors and aggregates in stationary and mobile use.
Specification
Elastomer body - CR grade with high elasticity, oil resistant, non-ageing.
Metal Parts - Steel, galvanised
Load Range 0.1 kN - 20 kN
Natural Frequency (stat) - 10 Hz - 25 Hz (in series < 9 Hz)
Delivery Contents
Support element without fastening screw.
CAD Viewer
Technical Data
