GN148 Levelling Foot, Sheet Metal with Vibration Damping Element

CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

Type - A with two-hole flange (d1 = 60/90/113)

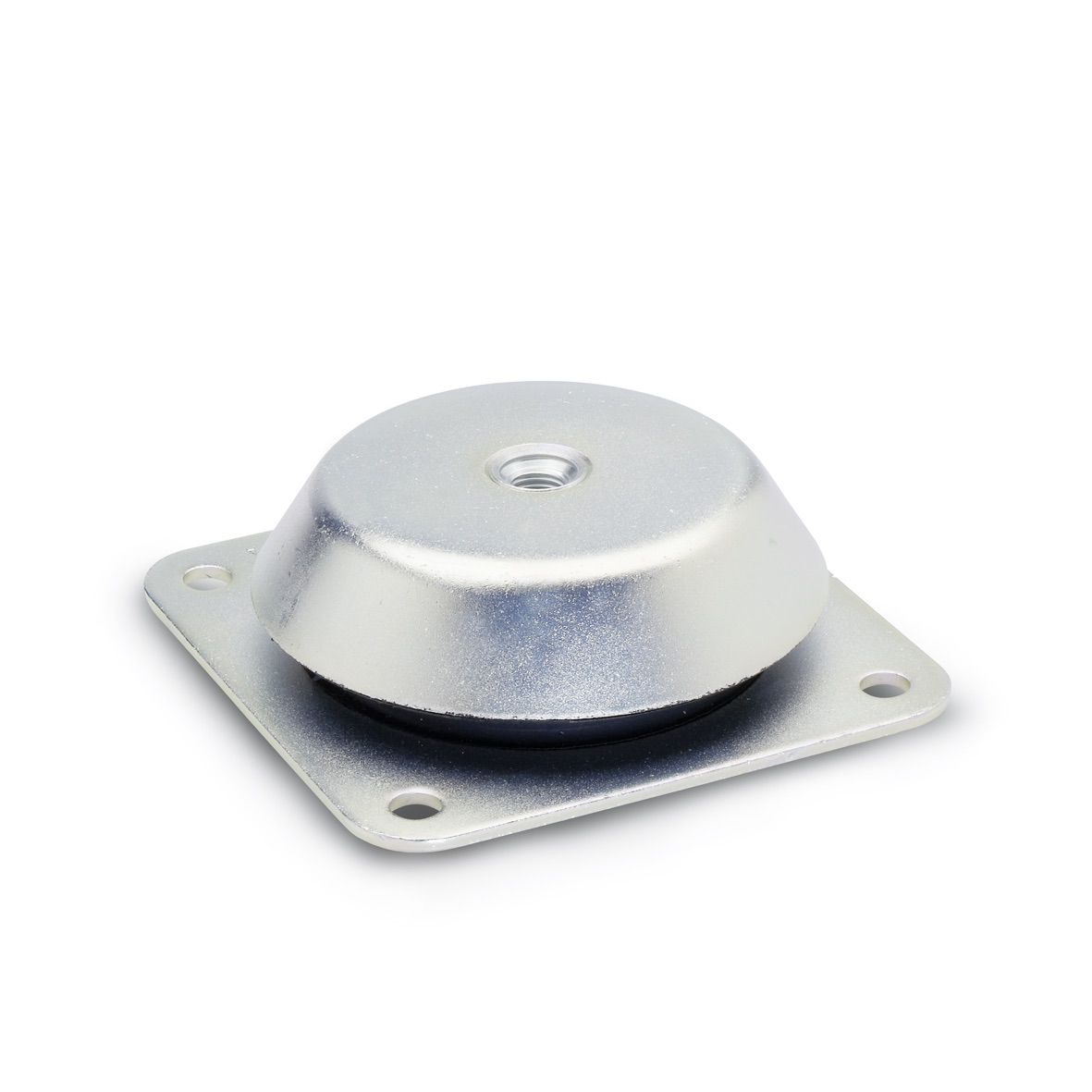

Type - B with four-bolt flange (d1 = 113/126)

ID No. - 1 without tear-off lock

ID No. - 2 with tear-off lock

CAD Viewer Technical Data

Product Description

GN148 Levelling Foot, Sheet Metal with Vibration Damping Element

These levelling feet are designed for setting up heavy machinery and units with insulation against vibrations.

This has a positive impact on the lifetime of machines and additionally reduces the noise pollution.

The structure is such that horizontal forces are also absorbed. The design with tear-off lock (Type 2) protects the levelling feet from destruction caused by tear-off under excessive tension loads.

The details relating to the load bearing capacity are non-binding recommended values and rule out any liability. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.

Specification

Vibration damping element - Natural rubber (NR),vulcanized, temperature resistant up to 80°C. Hardness Shore 5 , soft* 43, medium 57, hard* 68

* not available from stock - requires a minimum order quantity, please contact us for further details.

Sheet metal,  zinc plated, blue passivated.

Threaded insert - Steel, zinc plated, blue passivated.

Accessory

Rubber pads GN148.2
