GN343.5 Levelling Foot, Stainless Steel, Threaded Bush

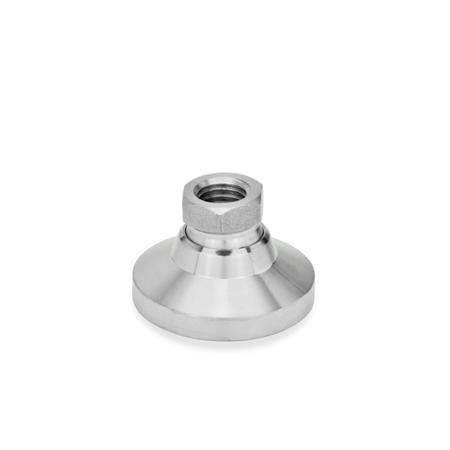

Type OS - without plastic cap

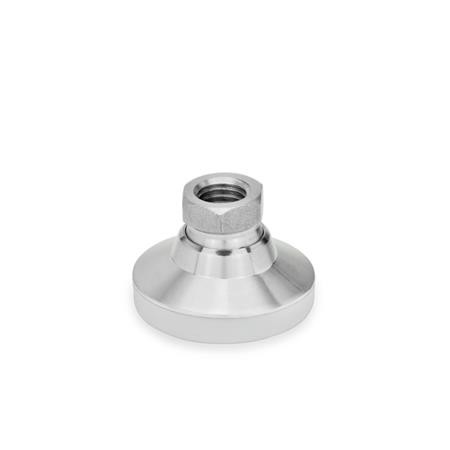

Type KS - with plastic cap, gliding
Type KR - with plastic cap, non-gliding
Type KSE - with plastic cap, gliding, electrically conductive (antistatic)

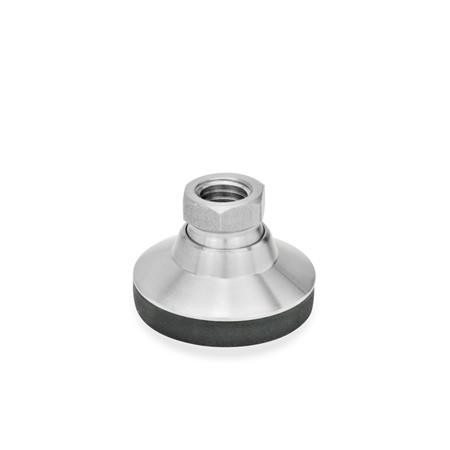

Type KRE - with plastic cap, non-gliding, electrically conductive (antistatic)
material properties of elastomeres rubber .pdf
Catalogue Technical Specification
2D/3D Cad Files
2D/3D Cad Files
GN 343.5 Levelling Foot, Stainless Steel, Threaded Bust
The static load of the levelling feet GN343.5 is limited by the load capacity of the ball socket (AISI 303).
The static load values in the attached pdf table refer to a net vertical load in relation to the ball socket. Under normal operating conditions side loading or angular loading is not uncommon and the load capacity would be considerably reduced which must be taken into consideration.
For higher loads levelling feet GN343.5 should be used in conjunction with screws of higher tensile strength. We recommend DIN 915 threaded studding with pressure pad. This pressure pad must be seated squarely at the bottom of the threaded hole, which will increase the load capacity of the ball in the socket. Otherwise the load values apply only to types OS and KS.
Stainless Steel, AISI 303 fine turned.
Type KS - Technopolymer Polyacetal (POM) cream/white RAL 9001.
Type KR - Thermoplastic rubber (TPE) 73 Shore hardness, black.
