GN42 Levelling Feet, with Fixing Lug, Rectangular Shape

Choose your Part

Please select desired options to reveal part number, price and availability

Options

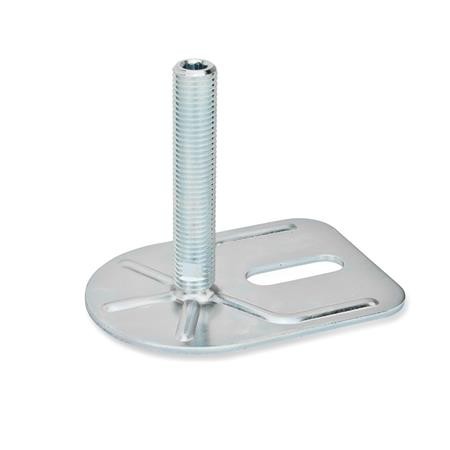

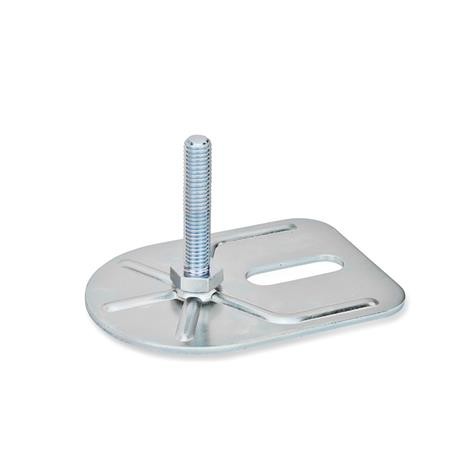

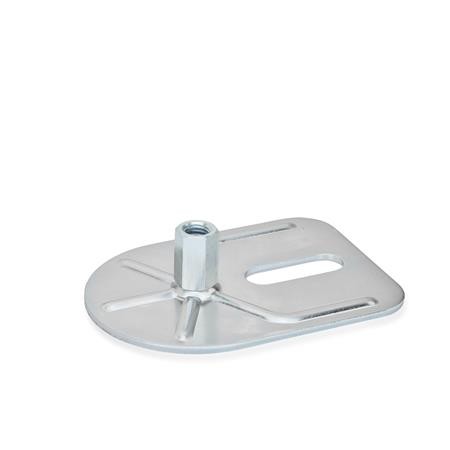

Type (Base) E0 - without rubber underlay, with one slotted hole

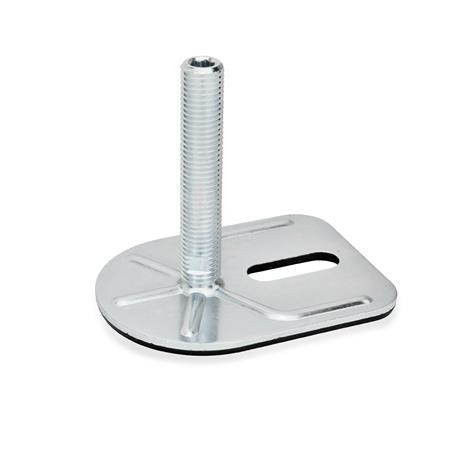

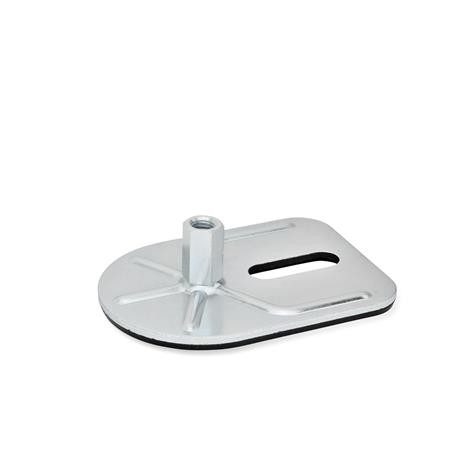

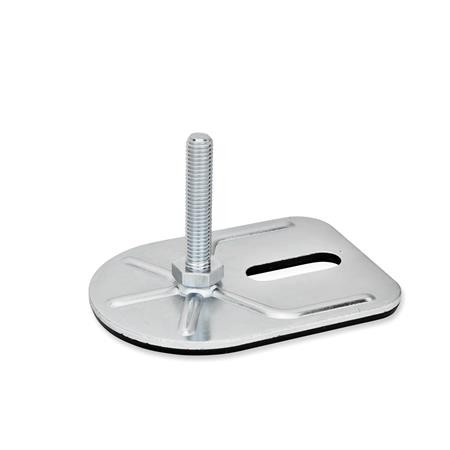

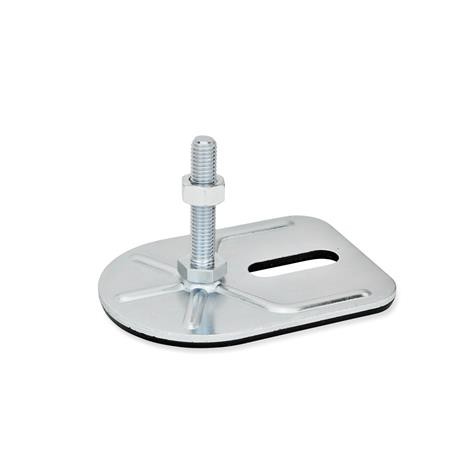

Type (Base) E3 - with rubber underlay, vulcanized, black, with one slotted hole

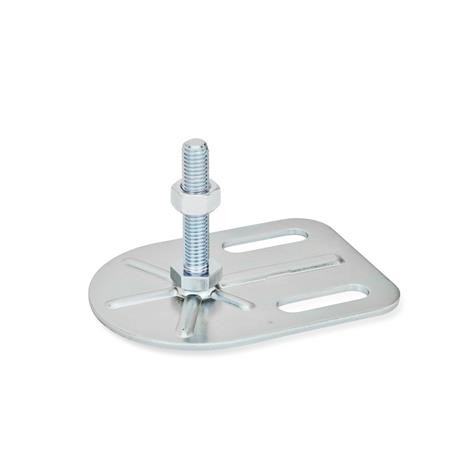

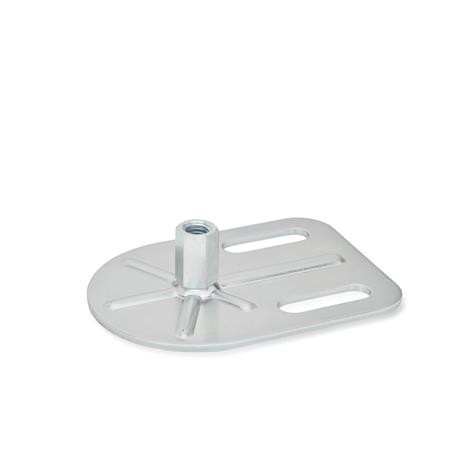

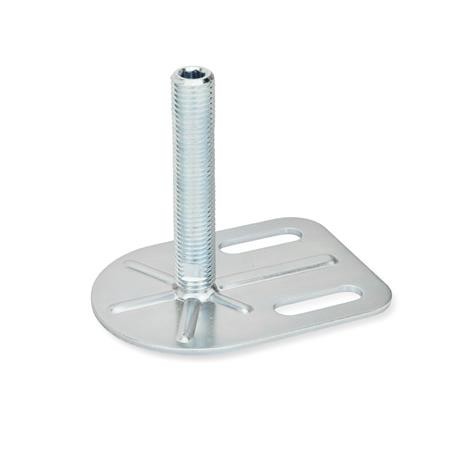

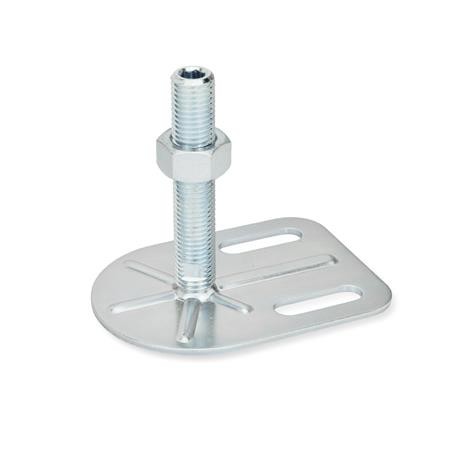

Type (Base) G0 - without rubber underlay, with 2 slotted holes

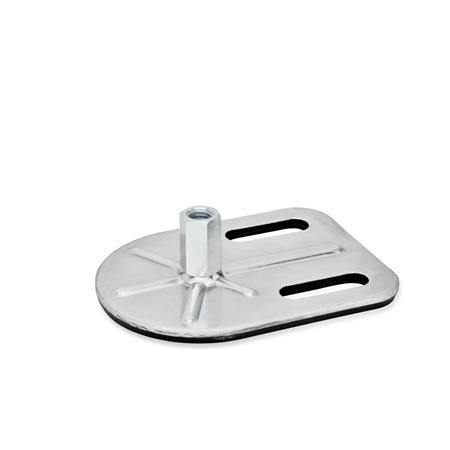

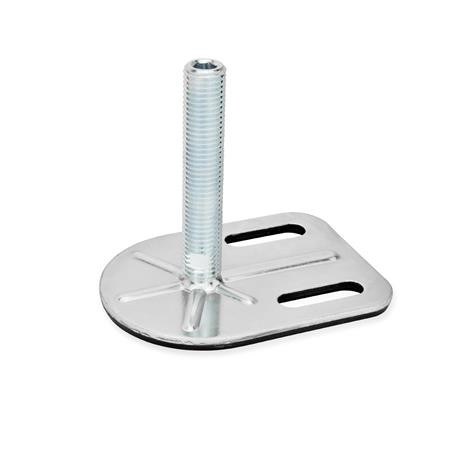

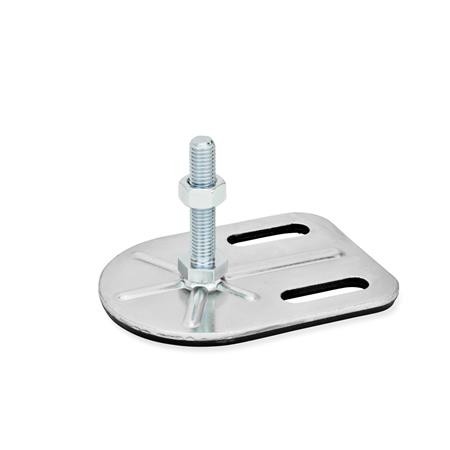

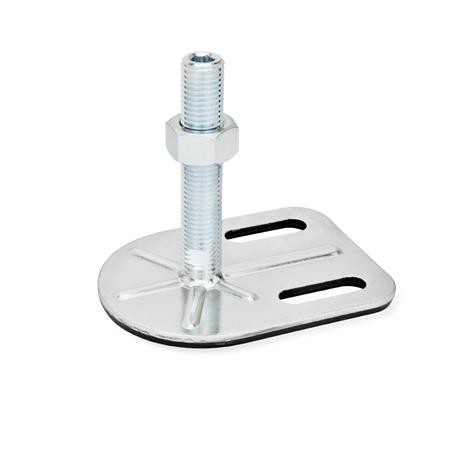

Type (Base) G3 - with rubber underlay, vulcanized, black, with 2 slotted holes

Version (Screw) S - without nut, external hexagon at the bottom

Version (Screw) SK - with nut, external hexagon at the bottom

Version (Screw) U - without nut, hexagon socket at the top, wrench flat at the bottom

Version (Screw) UK - with nut, hexagon socket at the top, wrench flat at the bottom

Version (Screw) X - external hexagon, internal thread

Product Description

GN42 Levelling Feet, with Fixing Lug, Rectangular Shape

GN 42 levelling feet can be used in a host of combinations of base plates and adjustable spindle versions.

The levelling feet can be screwed to the mounting surface using the fixing lug, which prevents lateral shifting. In addition, the types with the rubber underlay protect sensitive surfaces.

The levelling feet are supplied fully assembled and are not removable.

Specification

Base plate - Steel, zinc plated, blue passivated

Threaded stem - Steel, zinc plated, blue passivated

Hexagon nut ISO 4032 - Steel, zinc plated, blue passivated

Rubber underlay - vulcanized, black, Perbunan® (NBR) 70 ±5 Shore A
