GN581 Lifting Eye Bolts Rotating, Steel,Optional Spanner



Type: B - with spanner

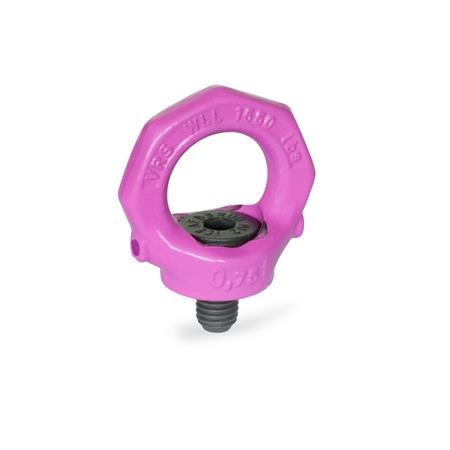

Type: A - without spanner

CAD Viewer Technical Data

Series Selector


Type A - without spanner

Type B - with spanner

CAD Viewer Technical Data

Product Description

GN581 Lifting Eye Bolt, Rotating, Steel, Optional Spanner

These lifting eye bolts are mounted in rotating bearings, allowing the direction of the force action to be adjusted and preventing inadvertent loosening or overturning (as potentially possible in lifting eye bolts DIN580).

They offer a high load carrying capacity and they are tested to meet safety standards (safety factor 4).

The rated load carrying capacity listed in the above table is clearly marked on the ring. It applies to the most unfavourable load application of the load types listed opposite.

Lifting eye bolts GN 581 comply with Mechanical Engineering Directive 2006 / 42 / EG and are BG tested.

The hexagon socket bolt cannot be removed from the ring.

Type B is suitable for assembly without the need to use tools: inserting the spanner in the hexagon socket of the bolt allows the bolt to be turned in and out by hand.


Ring - Steel ST, German Material No. 1.6541. Forged, high-tensile tempered, 100% electro magnetic tensile tested to EN 1677.

Plastic coated - Pink.

Bolt - Steel ST, Tensile strength class 10.9.
