GN585 Shackles, Cranked, Heat Treatable Steel

CAD Viewer Technical Data

Series Selector


Type A - with stud bolt.

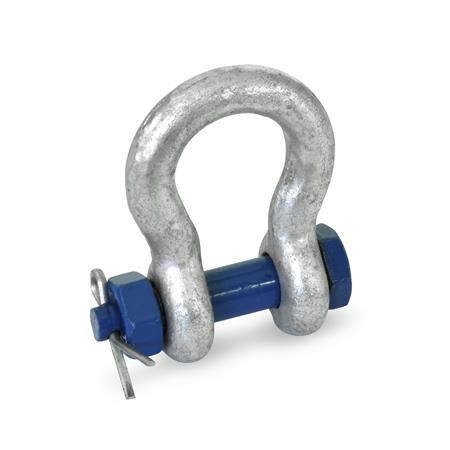

Type B - bolt with nut and splint.

CAD Viewer Technical Data

Product Description

GN585 Shackles, Cranked, Heat Treatable Steel

These high-strength cranked shackles are made in accordance with the US Federal Specification RR-C-271 and feature sixfold safety standards, which means that the minimum failure load is at least six times greater than the value of the nominal load (WLL).

The cranked shape is particularly suitable for applications where the shackles are exposed to multiple loads.

The rated size and the nominal load (WLL) are drop-forged into the shackle which makes it easier to select the proper sling gear. In general, the nominal load must not be exceeded.

The designs with nut and split pin (Type B) are normally recommended for permanent connections. The bolts are allowed to rotate, and the nuts are secured against inadvertent loosening with a split pin.

Operating instructions with more details and specifications are included with every delivery.


Ring bracket - Heat treatable steel ST, die-forged, hot-dip galvanised.

Bolt - Heat treatable steel ST, die-forged, galvanic zinc plated, lacquered.

Also available in straight variant.
