GN6311.4 Levelling Foot, Steel, Optional Plastic Cap

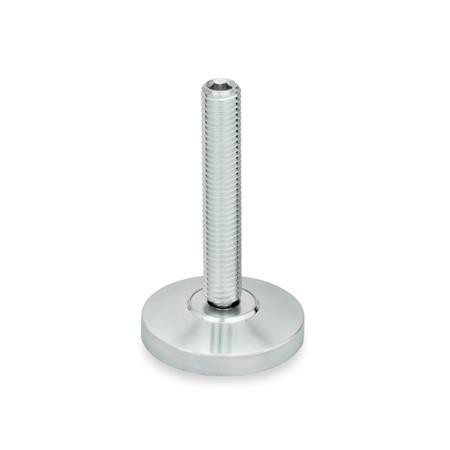

Type OS - Without Plastic Cap

Type KS - With Plastic Cap, Gliding

Type KR - With Plastic Cap, Non-gliding

Select Values to Buy:

Tech Spec:



GN6311.4 Levelling Foot, Steel, Optional Plastic Cap

These levelling feet are normally used when a thread is present at the machine side to adjust the height.

The pin diameter d3 is smaller than the core diameter of the thread, with the effect that the screw can be turned in at the pin. The pressure pin is easily inserted into the plate, with the retaining ring ensuring that the assembly is secure in axial direction.

The static load is limited by the load capacity of the grub screw (Tensile strength class 5.8). The static load values (only valid for Type OS/KS) in the attached table refer to a net vertical load in relation to the ball socket. Under normal operating conditions side loading or angular loading is not uncommon and the load capacity would be considerable reduced which must be taken into consideration.

Specification

Steel, Tensile strength class 5.8 (500 N/mm), zinc plated, blue passivated.

Circlip - Spring steel wire, zinc plated, blue passivated

Plastic caps - Type KS Technopolymer (Polyacetal POM), white (natural colour) RAL 9001.

Plastic caps - Type KR Elastomer (TPE), 78 Shore, black.

RoHS compliant

Select / Deselect Visible Columns
PartCoded1d2l1d3l2l3l4l5A/FStatic load
kN
TypeMass

GN6311.4-50-M10-37-OS50M1037812.511.51413513OS0.16
GN6311.4-50-M10-37-KS50M1037812.511.51413513KS0.1
GN6311.4-50-M10-37-KR50M1037812.511.51413513KR0.12
GN6311.4-50-M10-47-OS50M1047812.511.51413513OS0.165
GN6311.4-50-M10-47-KS50M1047812.511.51413513KS0.163
GN6311.4-50-M10-47-KR50M1047812.511.51413513KR0.163
GN6311.4-50-M10-57-OS50M1057812.511.51413513OS0.178
GN6311.4-50-M10-57-KS50M1057812.511.51413513KS0.178
GN6311.4-50-M10-57-KR50M1057812.511.51413513KR0.178
GN6311.4-50-M10-72-OS50M1072812.511.51413513OS0.182
GN6311.4-50-M10-72-KS50M1072812.511.51413513KS0.182
GN6311.4-50-M10-72-KR50M1072812.511.51413513KR0.18
GN6311.4-50-M12-41-OS50M1241812.511.51413613OS0.16
GN6311.4-50-M12-41-KS50M1241812.511.51413613KS0.133
GN6311.4-50-M12-41-KR50M1241812.511.51413613KR0.14
GN6311.4-50-M12-51-OS50M1251812.511.51413613OS0.18
GN6311.4-50-M12-51-KS50M1251812.511.51413613KS0.162
GN6311.4-50-M12-51-KR50M1251812.511.51413613KR0.16
GN6311.4-50-M12-61-OS50M1261812.511.51413613OS0.18
GN6311.4-50-M12-61-KS50M1261812.511.51413613KS0.168
GN6311.4-50-M12-61-KR50M1261812.511.51413613KR0.16
GN6311.4-50-M12-71-OS50M1271812.511.51413613OS0.15
GN6311.4-50-M12-71-KS50M1271812.511.51413613KS0.18
GN6311.4-50-M12-71-KR50M1271812.511.51413613KR0.15
GN6311.4-50-M12-91-OS50M1291812.511.51413613OS0.21
GN6311.4-50-M12-91-KS50M1291812.511.51413613KS0.175
GN6311.4-50-M12-91-KR50M1291812.511.51413613KR0.18
GN6311.4-50-M16-59-OS50M16591214.513.51615830OS0.22
GN6311.4-50-M16-59-KS50M16591214.513.51615830KS0.42
GN6311.4-50-M16-59-KR50M16591214.513.51615830KR0.2
GN6311.4-50-M16-69-OS50M16691214.513.51615830OS0.24
GN6311.4-50-M16-69-KS50M16691214.513.51615830KS0.22
GN6311.4-50-M16-69-KR50M16691214.513.51615830KR0.22
GN6311.4-50-M16-89-OS50M16891214.513.51615830OS0.26
GN6311.4-50-M16-89-KS50M16891214.513.51615830KS0.258
GN6311.4-50-M16-89-KR50M16891214.513.51615830KR0.24
GN6311.4-50-M16-114-OS50M161141214.513.51615830OS0.289
GN6311.4-50-M16-114-KS50M161141214.513.51615830KS0.3
GN6311.4-50-M16-114-KR50M161141214.513.51615830KR0.27
GN6311.4-60-M16-59-OS60M16591214.513.51615830OS0.31
GN6311.4-60-M16-59-KS60M16591214.513.51615830KS0.302
GN6311.4-60-M16-59-KR60M16591214.513.51615830KR0.282
GN6311.4-60-M16-69-OS60M16691214.513.51615830OS0.32
GN6311.4-60-M16-69-KS60M16691214.513.51615830KS0.314
GN6311.4-60-M16-69-KR60M16691214.513.51615830KR0.28
GN6311.4-60-M16-89-OS60M16891214.513.51615830OS0.35
GN6311.4-60-M16-89-KS60M16891214.513.51615830KS0.34
GN6311.4-60-M16-89-KR60M16891214.513.51615830KR0.31
GN6311.4-60-M16-114-OS60M161141214.513.51615830OS0.38
GN6311.4-60-M16-114-KS60M161141214.513.51615830KS0.374
GN6311.4-60-M16-114-KR60M161141214.513.51615830KR0.34
GN6311.4-60-M20-78-OS60M207815.516.515.518171050OS0.4
GN6311.4-60-M20-78-KS60M207815.516.515.518171050KS0.156
GN6311.4-60-M20-78-KR60M207815.516.515.518171050KR0.38
GN6311.4-60-M20-88-OS60M208815.516.515.518171050OS0.4
GN6311.4-60-M20-88-KS60M208815.516.515.518171050KS0.516
GN6311.4-60-M20-88-KR60M208815.516.515.518171050KR0.396
GN6311.4-60-M20-113-OS60M2011315.516.515.518171050OS0.48
GN6311.4-60-M20-113-KS60M2011315.516.515.518171050KS0.446
GN6311.4-60-M20-113-KR60M2011315.516.515.518171050KR0.45
GN6311.4-60-M20-138-OS60M2013815.516.515.518171050OS0.52
GN6311.4-60-M20-138-KS60M2013815.516.515.518171050KS0.518
GN6311.4-60-M20-138-KR60M2013815.516.515.518171050KR0.44
