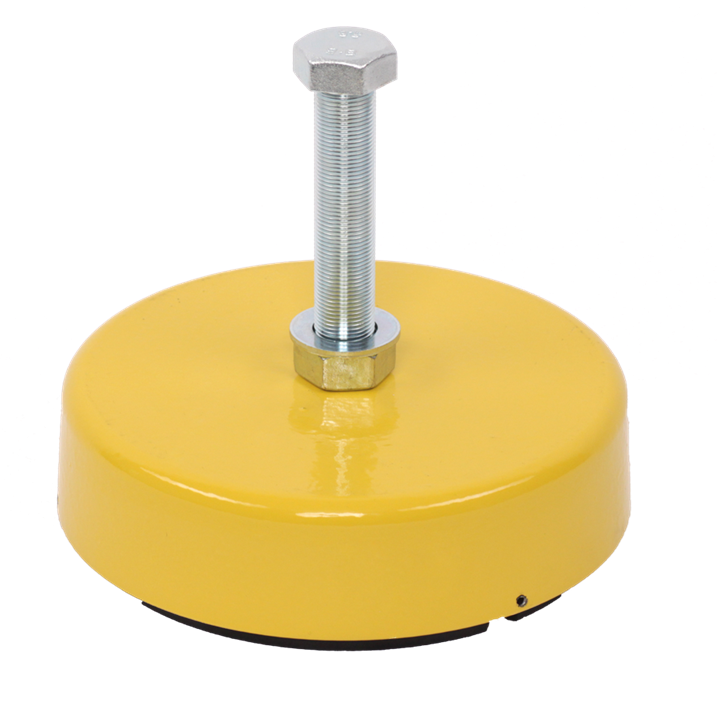

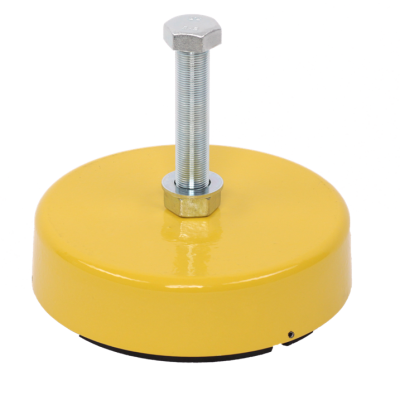

LMP Series Support Element with Integrated Levelling System

CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

CAD Viewer Technical Data

Product Description

The LMP series comes with a specially moulded elastomer body combined with a steel pressure plate and outer plate with integrated levelling system in 4 sizes.

For the installation of machines with large horizontal forces, the EFFBE LMP machine support elements are the perfect solution. The machine support element LMP is the high-quality levelling foot solution for the installation of horizontally operating machines, which are mounted and operated on top of one another.

The oil and ageing-resistant elastomer body made of nitrile rubber with integrated levelling system guarantee vibration isolation, structure-borne noise insulation and shock absorption at the highest level - especially for large horizontal forces.

Levelling occurs with fine thread screw with a max levelling range of 30mm.

The application uses for LMP support mounts are with horizontally operating equipment such as injection moulding machines/presses which are installed above ground floor level.

Specification

Elastomer body - nitrile rubber NBR 90 SH A with high elasticity.

Outer Plate - ductile cast iron or steel, yellow powder coated.

Pressure Plate - Steel

Screw ISO 8676 (DIN 961) - galvanised

Delivery Contents

Support element with levelling screw.
