GN552.6 ATEX Breather Cap, Plastic

CAD Viewer Technical Data

Series Selector

Coding 1 - with splash shields, no filter.

Coding 2 - with splash shields, with PU filter.

Type A - without dipstick.

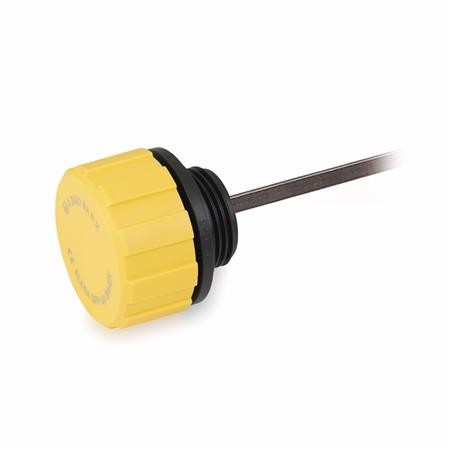

Type B - with dipstick.

CAD Viewer Technical Data

Product Description

GN552.6 ATEX Breather Cap, Plastic

These breather caps are suitable for use in an explosion risk environment. They comply with guidelines 94/9/EG. Detailed operating instructions are included.

They are cost effective and can be supplied with or without an attached dipstick. They are fitted with a splash guard device which prevents oil loss, especially for when oil is violently agitated and could be splashed against the breather cap.

They are resistant to heat, solvents, oils, grease and other chemical agents. Max. and Min. markings can easily be added to the flats of the dipstick.

Specification

Plastic, temperature resistant up to 80°C.

Lower part (threaded part) - black.

Sealing ring - rubber, NBR (Perbunan)

Air filter - PU foam, Polyurethane, Filtration 40 m.

Dipstick - Steel, phosphated.
