GN650.4 HCZ Oil Level Indicators Narrow Shape optional protection frame reduced size liquid level column type

Standard Machine Elements > Oil Level Sight Glasses, Level Indicators & Plugs > Oil Level Indicators
< Previous Product Next Product >

GN650.4 (HCZ) Oil Level Indicator, Narrow Shape







Type A - with neutral contrast screen, without protection frame.

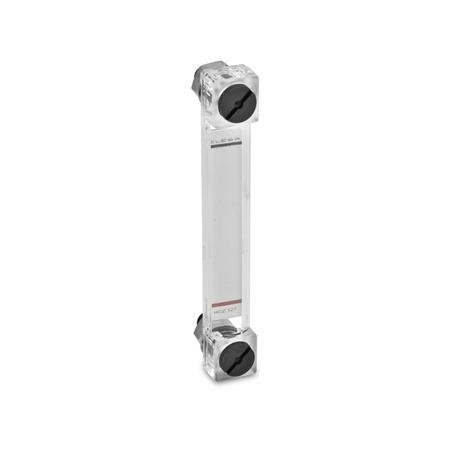

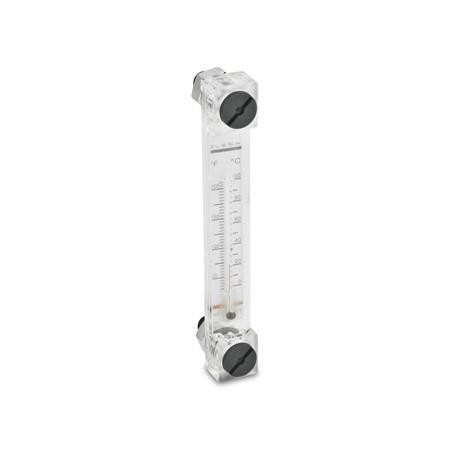

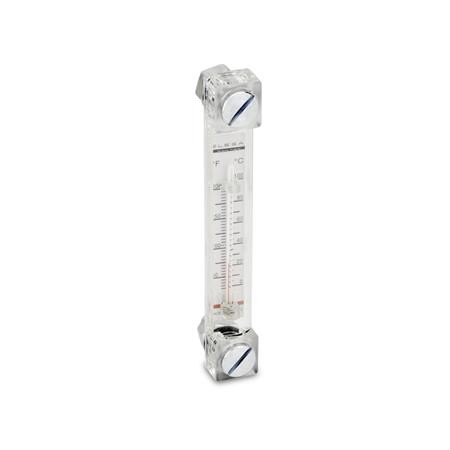

Type B - with thermometer, without protection frame.

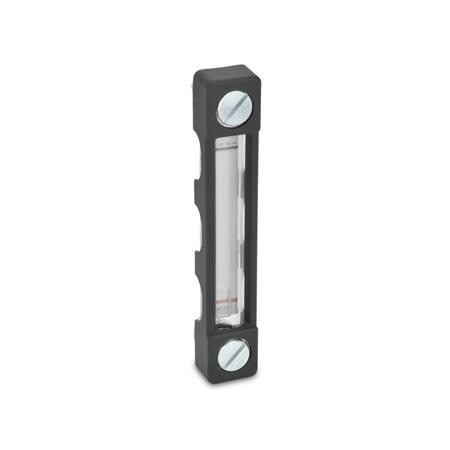

Type AS - with neutral contrast screeen, with protection frame.

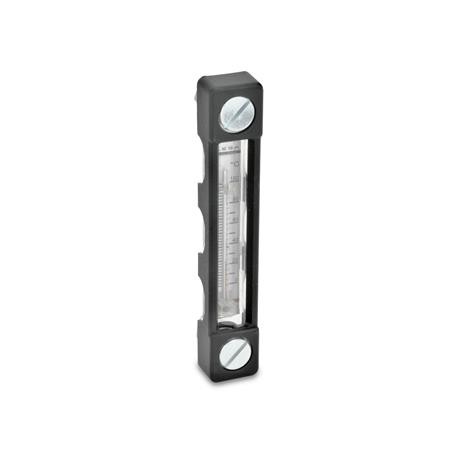

Type BS - with thermometer, with protection frame.

Select Values to Buy:

Tech Spec:



GN650.4 (HCZ) Oil Level Indicator, Narrow Shape

A special feature of these column oil level indicators is their reduced dimension. The liquid level is visible even from side positions.

The polyamide body consists of two parts which are ultrasonically welded together. The oil level indicators are individually air pressure tested for leaks at 3 bar.

All oil level indicators GN 650.4 can also be used on tanks which are pressurised. Pressure test results regarding resistance under pressure are available.

As a contrast screen, a white lacquered aluminium strip is used which shows marking lines or temperature scale.

The scale is placed behind and outside the liquid column as a protective measure.

The protection frame is designed to increase the resistance of the indicator by absorbing all shocks. The protection frame is mounted to the indicator.

Specification

Body - Plastic, crystal-clear Polyamide (PA 6-T), ageing resistant, high mechanical strength. Temperature restistant up to 90°C. Solvent resistant, but not suitable for alcohol, avoid contact with hot water.

Protection frame - Plastic (Polyamide PA), glass fibre reinforced, black, matt.

Contrast screen - Aluminium, white lacquered, with two black marking lines / scale.

O-ring - rubber NBR (Perbunan)

RoHS compliant
