GN742 Threaded Plug, Aluminium, With Optional DIN Drain / Fill Symbol, Black Anodised

CloseNextPrevious



CloseNextPrevious

GN742: Threaded Plug - Type: ASS
Id. no.: 1 - without Vent Drilling



CloseNextPrevious

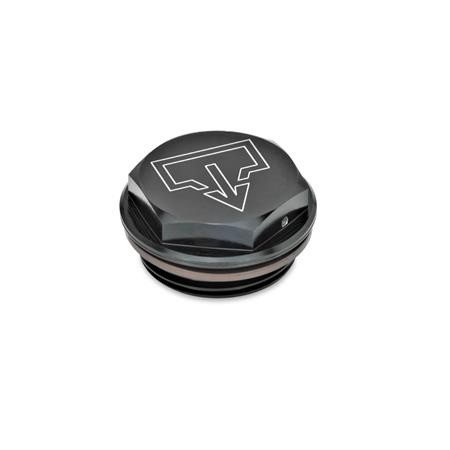

GN742: Threaded Plug - Type: ASS
Id. no.: 2 - with Vent Drilling



CloseNextPrevious

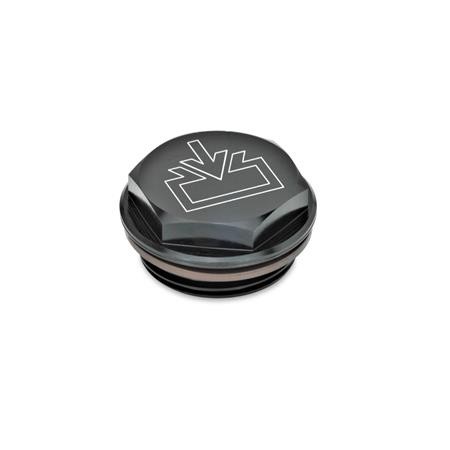

GN742: Threaded Plug - Type: ESS
Id. no.: 1 - without Vent Drilling



CloseNextPrevious

GN742: Threaded Plug - Type: ESS
Id. no.: 2 - with Vent Drilling



CloseNextPrevious

GN742: Threaded Plug - Type: OSS
Id. no.: 1 - without Vent Drilling



CloseNextPrevious

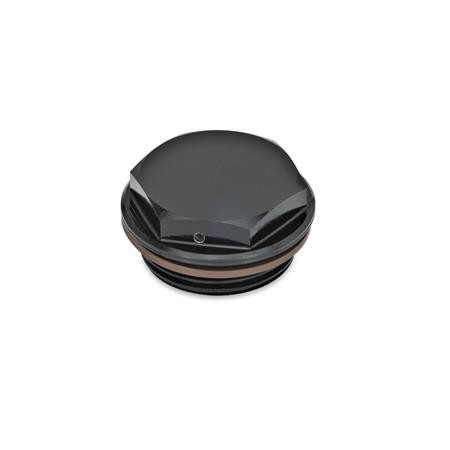

GN742: Threaded Plug - Type: OSS
Id. no.: 2 - with Vent Drilling



Choose your Part

Please select desired options to reveal part number, price and availability

d1 Outside diameter


Fine thread d1 / Inch thread d1


Type


Identification number


Please select enough values above to create a complete part code...

Options

Type OSS - neutral coding, black anodized

Type ESS - with DIN refill symbol, black anodized

Type ASS - with DIN drain symbol, black anodized

Identification 1 - without vent drilling

Identification 2 - with vent drilling


Product Description

GN742 Threaded Plug, With Optional DIN Drain / Fill Symbol, Aluminium, Black Anodised

Threaded plugs GN 742 are fitted with outside diameter d1 to suit screw holes with BSP threads to DIN3852.

The seal is bedded into a undercut groove which prevents it from dropping out and at the same time stops it from being extruded when tightening the cap. The seal can therefore be kept fairly soft which improves sealing on uneven surfaces.

Specification

Aluminium AL, fine turned.

Type OSS, ESS, ASS - black anodised.

Symbols - laser engraved

Temperature resistant up to 180 °C

Sealing ring rubber FPM (Viton®), identification by not black finish of seal.

On Request

With dipstick
