GN743.1 Oil Level Sight Glass, Aluminium & ESG Glass, Black Anodized

Choose your Part

Please select desired options to reveal part number, price and availability

Options

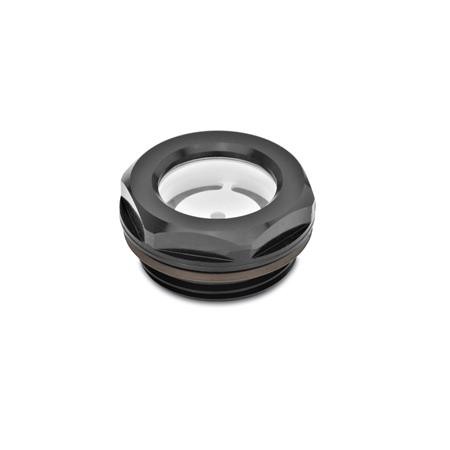

Type AS - with reflector, black anodized

Type BS - without reflector, black anodized

Product Description

GN743.1 Oil Level Sight Glass, Aluminium & ESG Glass, Black Anodized

These oil level sight glasses offer scratch proof glass with high stability. The sealing is achieved with an O-ring on the periphery and not on the face edge of the glass. Leak tightness is therefore not affected by axial pressures.

The seal is housed in a groove and it can therefore not be lost. In addition, this groove prevents the seal from being extruded when the sight glass is tightened. The location of this seal allows also the use of a softer Elastomer which guarantees better and easier sealing.

The outside diameter of these oil level sight glasses with recessed hexagon is designed to match mounting holes for tube connections according to DIN 3852.

Oil level sight glasses GN 743.1 can be used on pressurised oil tanks. Tests regarding maximum pressure are available on request.

Assembly Instruction

When mounting oil level sight glasses on walls of less than 4 mm thickness please use fixing nuts GN543.1.

Specification

Body - Aluminium AL, fine turned.

Type AS and BS - fine turned, black anodized

Reflector- Technopolymer (Polysulfon).

Sight Glass - ESG glass, temperature resistant up to 180 °C.

Sealing Ring - Rubber FPM (Viton®), identification by not black finish of the seal.

Accessory

Fixing nuts GN543.1

On Request

EPDM seal
