GN743.3 Oil Level Sight Glasses Recessed Hexagon Brass ESG pressurised tanks

Standard Machine Elements > Oil Level Sight Glasses, Level Indicators & Plugs > Oil Level Sight Glasses
< Previous Product Next Product >

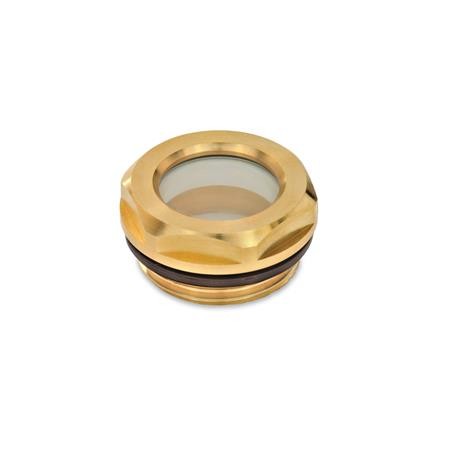

GN743.3 Oil Level Sight Glass, Brass & ESG Glass





Type A - with contrast screen

Type B - without contrast screen

Select Values to Buy:

Tech Spec:



GN 743.3 Oil Level Sight Glass, Brass & ESG Glass

Oil level sight glasses GN743.3 offer the following features: highly stable, scratch proof glass. The sealing is achieved with an O-ring on the periphery and not on the face edge of the glass. Leak tightness is therefore not affected by axial pressures.

The outside diameter of these oil level sight glasses with recessed hexagon is chosen to match mounting holes for tube connections according to DIN 3852.

The seal is housed in a groove and it can therefore not be lost. In addition, this groove prevents the seal from being extruded when the sight glass is tightened. The location of this seal allows also the use of a softer Elastomer which guarantees better and easier sealing.

Oil level sight glasses GN743.3 can be used on pressurised oil tanks. Tests regarding maximum pressure are available on request.

These oil level sight glasses are  also suitable for applications with subpressure.

Installation information

When mounting oil level sight glasses on walls of less than 4 mm thickness please use fixing nuts GN543.1.

Specification

Body - Brass, CuZn40Pb2.

Contrast screen - Technopolymer (Polysulfon).

Temperature resistant up to 180°C.

Sight glass - ESG glass.

Sealing ring - Rubber, FPM (Viton).

An EPDM seal is also available on request.

Accessory

Fixing nuts GN543.1

RoHS compliant

Select / Deselect Visible Columns
PartCoded1d2Typed3l1l2sMaterialMass

GN743.3-11-G3/8-A11G3/8A2287.520MS0.02
GN743.3-11-G3/8-B11G3/8B2287.520MS0.02
GN743.3-11-M16X1,5-A11M16x1,5A2287.520MS0.019
GN743.3-11-M16X1,5-B11M16x1,5B2287.520MS0.019
GN743.3-14-G1/2-A14G1/2A268.57.523MS0.023
GN743.3-14-G1/2-B14G1/2B268.57.523MS0.023
GN743.3-14-M20X1,5-A14M20x1,5A268.57.523MS0.023
GN743.3-14-M20X1,5-B14M20x1,5B268.57.523MS0.023
GN743.3-18-G3/4-A18G3/4A329830MS0.043
GN743.3-18-G3/4-B18G3/4B329830MS0.044
GN743.3-18-M26X1,5-A18M26x1,5A329830MS0.044
GN743.3-18-M26X1,5-B18M26x1,5B329830MS0.044
GN743.3-18-M27X1,5-A18M27x1,5A329830MS0.046
GN743.3-18-M27X1,5-B18M27x1,5B329830MS0.046
GN743.3-24-G1-A24G1A40118.536MS0.065
GN743.3-24-G1-B24G1B40118.536MS0.069
GN743.3-24-M33X1,5-A24M33x1,5A40118.536MS0.07
GN743.3-24-M33X1,5-B24M33x1,5B40118.536MS0.07
